Q235 High Pressure Plate Heat Exchanger For Heat Recovery Oil Cooling Gas Processing

Ultra High Pressure Brazed Plate Heat Exchanger Used For Heat Recovery, Oil Cooling, And Gas Processing Applications

Introduction :

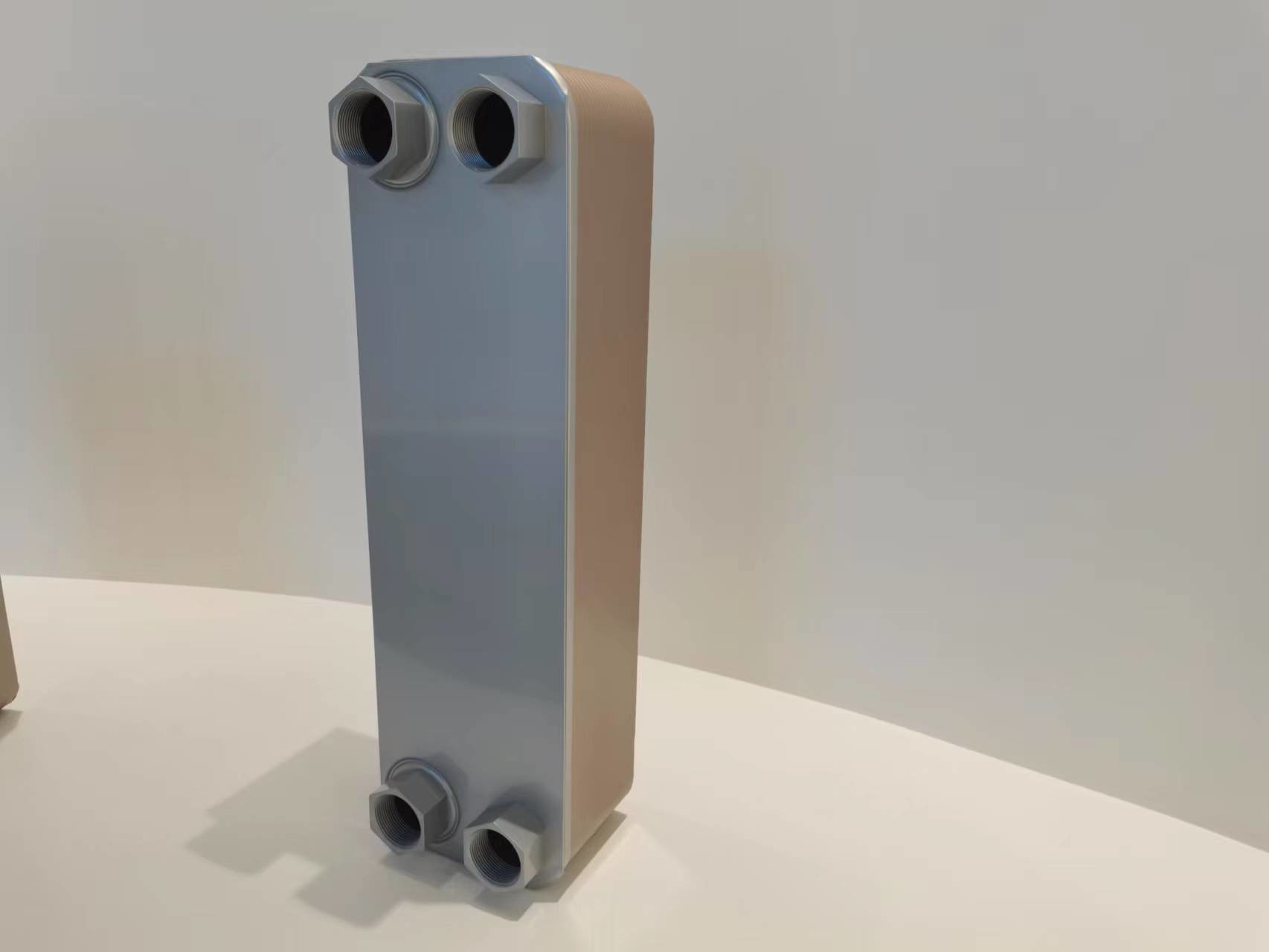

ULTRA HIGH PRESSURE BRAZED Plate Heat Exchanger adopt double splint design , make its compact structure and more pressure-bearing . It can use in heat pump system with R722(CO₂) refrigerating fluid .

The high-pressure brazed plate heat exchanger is a compact and efficient heat transfer device designed for applications that require high-pressure operation. It consists of a series of corrugated metal plates that are brazed together using a high-temperature process. This construction allows for excellent thermal performance and pressure resistance.

Applicable temperature : 200 ℃

Design Pressure : 14 Mpa

Test Pressure : 21 Mpa

Remark : splint material is Q235 , bolt for M16 , M20 , and available for suited lifting lug , footing , etc .

Workshop :

Copper Material :
