4.5Mpa High Pressure Plate Heat Exchanger In Petrochemical Processes And Chemical Synthesis

Plate Design High Pressure Brazed Plate Heat Exchanger In Petrochemical Processes, Including Refining And Chemical Synthesis

Introduction :

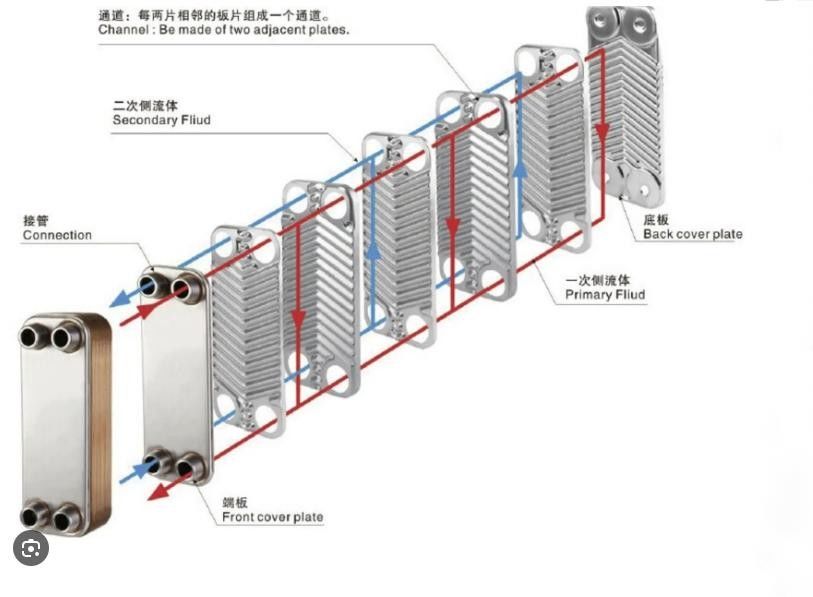

ULTRA HIGH PRESSURE BRAZED Plate Heat Exchanger adopt double splint design , make its compact structure and more pressure-bearing . It can use in heat pump system with R722(CO₂) refrigerating fluid .

With its compact design and high heat transfer efficiency, the high-pressure brazed plate heat exchanger offers several advantages. It provides a large surface area for heat exchange within a small footprint, resulting in space savings and reduced installation costs.

the high-pressure brazed plate heat exchanger is a reliable and efficient solution for demanding applications where high-pressure operation and compact design are critical factors. Its advanced design and performance make it a preferred choice in various industries for efficient heat transfer and improved process efficiency.

Applicable temperature : 200 ℃

Design Pressure : 14 Mpa

Test Pressure : 21 Mpa

Remark : splint material is Q235 , bolt for M16 , M20 , and available for suited lifting lug , footing , etc .
