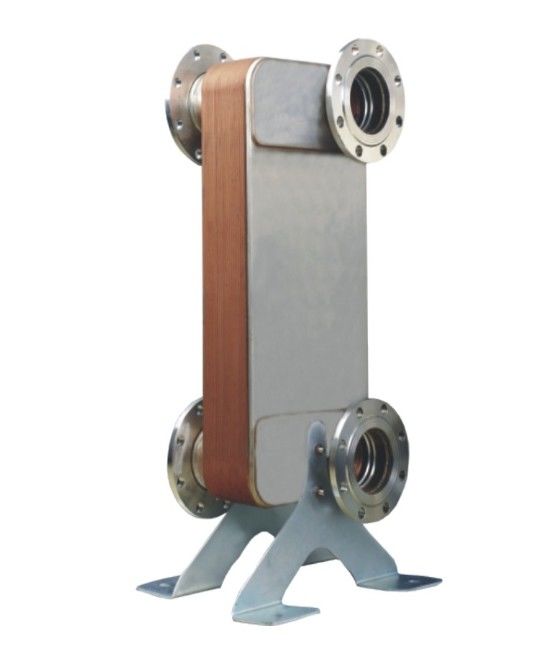

42m3/H High Pressure Plate Heat Exchanger Brazed For Power Generation

Sealing Technology High Pressure Brazed Plate Heat Exchanger For Power Generation Between Different Fluids, Such As Cooling Water And Steam

Introduction :

ULTRA HIGH PRESSURE BRAZED Plate Heat Exchanger adopt double splint design , make its compact structure and more pressure-bearing . It can use in heat pump system with R722(CO₂) refrigerating fluid .

The high-pressure brazed plate heat exchanger is a compact and efficient heat transfer device designed for applications that require high-pressure operation. It consists of a series of corrugated metal plates that are brazed together using a high-temperature process. This construction allows for excellent thermal performance and pressure resistance.

With its compact design and high heat transfer efficiency, the high-pressure brazed plate heat exchanger offers several advantages. It provides a large surface area for heat exchange within a small footprint, resulting in space savings and reduced installation costs.

Applicable temperature : 200 ℃

Design Pressure : 14 Mpa

Test Pressure : 21 Mpa

Remark : splint material is Q235 , bolt for M16 , M20 , and available for suited lifting lug , footing , etc .

Workshop :

Copper Material :
