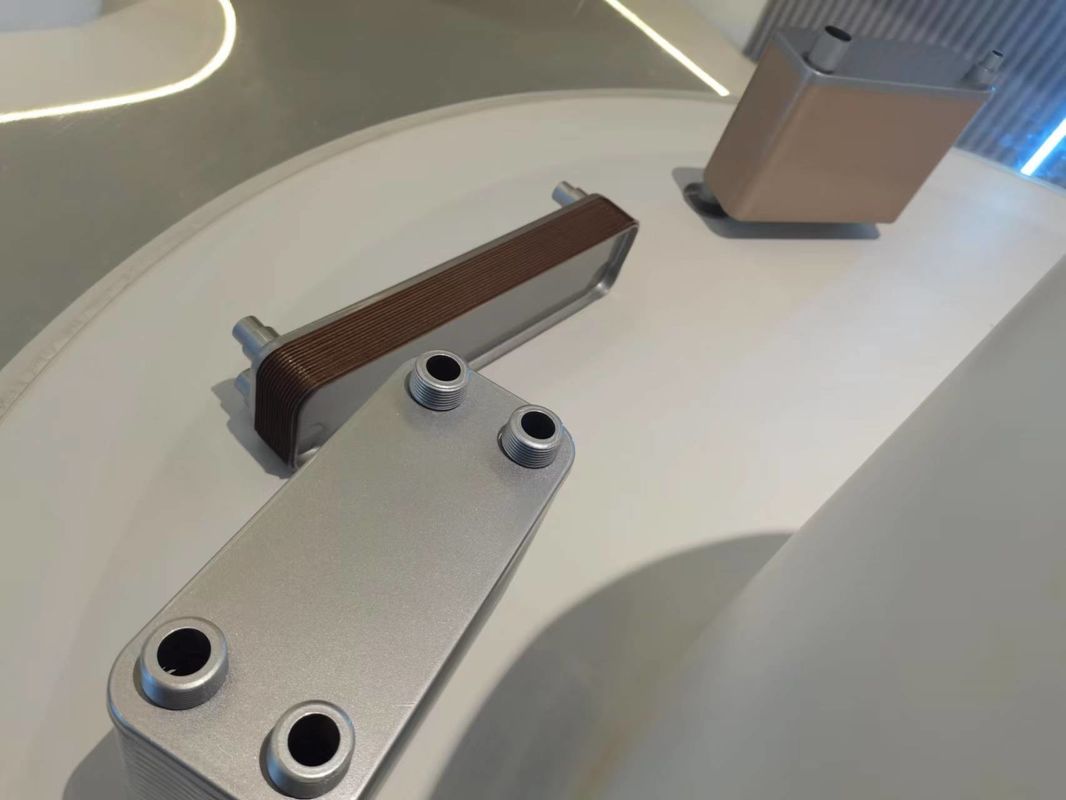

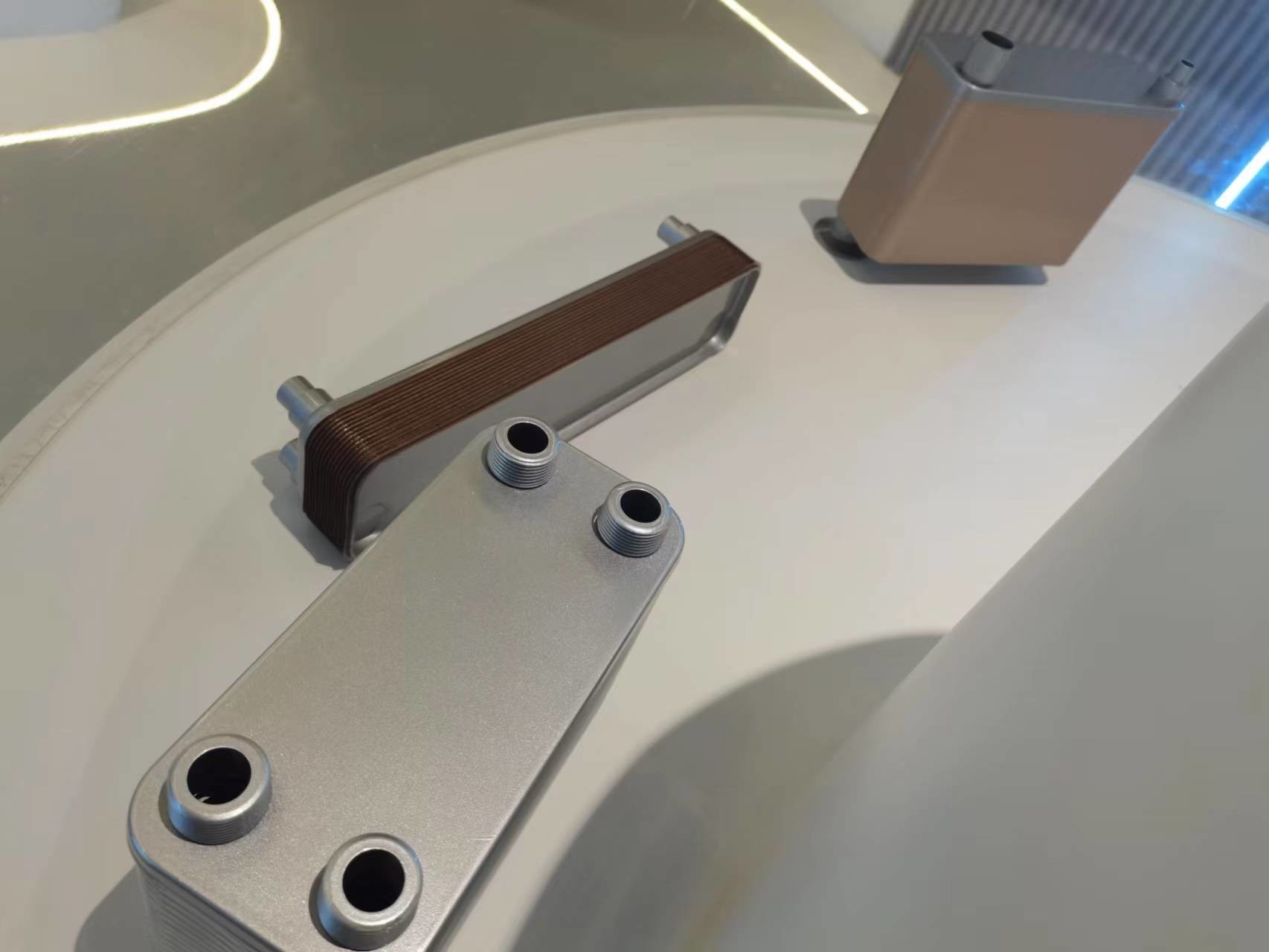

Customizable Copper Plate Heat Exchanger For Power Generation
Product Description:
Copper Plate Heat Exchanger is designed to perform efficient heat transfer between two media. It is a highly efficient and robust heat exchanger that is manufactured from copper plates brazed together with a high-temperature vacuum brazing furnace. It features a high thermal performance, reliable operation, and is available in a wide range of sizes and connections. With a design temperature ranging from -196℃ to 225℃ and a maximum pressure of 4.5Mpa, the Copper Plate Heat Exchanger is an ideal choice for many applications. It is widely used in industries such as HVAC, food processing, pharmaceutical, and chemical processing. The connection type includes SAE Flanged, Flanged, Male Thread, Female Thread, and Soldering. This product is classified under HS CODE 8419500090.
The Copper Plate Heat Exchanger is a great option for a variety of applications that require a reliable and efficient heat exchanger. It is designed for maximum performance and durability with its advanced design and superior construction. This product is an ideal choice for a brazed plate evaporator and a copper brazed plate heat exchanger. It is designed to handle a wide range of temperatures and pressures, making it a perfect choice for commercial and industrial establishments.
The Copper Plate Heat Exchanger is a great choice for anyone looking for an efficient and reliable heat exchanger. Its superior construction and advanced design make it ideal for a variety of applications. With its wide range of sizes and connections, it is the perfect choice for any commercial or industrial setting.
Features:
- Product Name: Copper Plate Heat Exchanger
- Warranty: One Year
- Connection Type: SAE Flanged, Flanged, Male Thread, Female Thread, Soldering
- Max Pressure: 4.5Mpa
- HS CODE: 8419500090
- Design Pressure: Max 4.5Mpa
- Special Features: Refrigeration Plate Heat Exchanger, Chiller Plate Heat Exchanger
Technical Parameters:
| Property |
Value |
| Flow Rate |
8→300m³/h |
| Max Pressure |
4.5Mpa |
| Design Pressure |
Max 4.5Mpa |
| Type |
Plate Heat Exchanger |
| Material |
Copper |
| Design Temperature |
-196℃→ 225℃ |
| Size |
Customizable |
| Connection Type |
SAE Flanged, Flanged, Male Thread, Female Thread, Soldering |
| Warranty |
One Year |
| HS CODE |
8419500090 |
| Keyword |
Water to Water Plate Heat Exchanger, Heat Pump Heat Exchanger, Plate Cooler Heat Exchanger |
| TYPE |
B(mm |
C(mm |
D(mm) |
E(mm) |
Thickness
(mm)
|
Weight(Kg) |
Max Flow (m3/h) |
Design Pressure (Mpa) |
| SB14 |
77 |
42 |
206 |
172 |
9+2.3N |
0.7+0.06N |
8 |
1/3/4.5 |
| SB16 |
78 |
42 |
208 |
172 |
9+2.24N |
0.6+0.049N |
8 |
1/3/4.5 |
| SB18 |
95 |
50 |
210 |
165 |
7+3.1N |
0.7+0.06N |
8 |
1 |
| SB20B |
78 |
42 |
318 |
282 |
9+2.3N |
1+0.08N |
8 |
3/4.5 |
| SB20C |
77 |
42 |
313 |
278 |
10+1.28N |
0.9+0.07N |
8 |
3/4.5 |
| SB26 |
111 |
50 |
310 |
250 |
10+2.32N |
1.3+0.12N |
18 |
3/4.5 |
| SB26F |
107 |
50 |
307 |
250 |
10+1.98N |
1.3+0.1N |
18 |
3/4.5 |
| SB28B |
120 |
72 |
290 |
243 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB28C |
120 |
63 |
290 |
234 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB30 |
126 |
70 |
307 |
250 |
10+2.35N |
2.2+0.16N |
18 |
3/4.5 |
| SB52A |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.21N |
18 |
3/4.5 |
| SB52B |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.19N |
18 |
3/4.5 |
| SB53 |
106 |
50 |
522 |
466 |
9+2.1N |
2.6+0.27N |
18 |
3/4.5 |
| SB62A |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB62B |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB65 |
125 |
65 |
540 |
480 |
11+2.28N |
2.5+0.228N |
18 |
3/4.5 |
| SB95A |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB95B |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB120A |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB120B |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB190 |
303 |
179 |
695 |
567 |
13+2.3N |
12+0.61N |
100 |
1.6/2.1/3 |
| SB200A |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200B |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200E |
320 |
207 |
742 |
624 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB202 |
319 |
188 |
741 |
603 |
16+2.85N |
13+0.957N |
100 |
2.1/3 |
| SB300 |
370 |
118(95.5) |
995 |
861(816) |
17+2.675N |
20+1.26N |
200 |
1.6/2.1/3 |
| SB500 |
304 |
179 |
982 |
854 |
17+2.29N |
26.6+0.93N |
200 |
2.1/3 |
| SB01 |
390 |
204 |
1320 |
1132 |
22+2.75N |
30+1.8N |
300 |
3/4.5 |
Applications:
Are you looking for an efficient, reliable and cost-effective heat pump heat exchanger? Look no further than Tenkai's Copper Plate Heat Exchanger. With its high quality material and advanced design, this heat exchanger provides an ideal solution for a wide variety of heat exchange applications.
The Tenkai Copper Plate Heat Exchanger is made with premium grade copper and is designed for use in a wide range of applications, such as chiller plate heat exchangers, condenser plate heat exchangers, and other heat exchange applications. It is available in a wide range of sizes and configurations, and features a design temperature range of -196℃ → 225℃ and a flow rate of 8→300m³/h. The maximum pressure of this heat exchanger is 4.5Mpa.
This heat exchanger is available in various connection types, including SAE flanged, flanged, male thread, female thread, and soldering. It is certified to ISO standards and is offered with competitive pricing. The minimum order quantity for this product is 1 wooden package and it is usually delivered within five working days.
Tenkai's Copper Plate Heat Exchanger is designed to provide superior performance, and it is capable of supplying up to 8000 pieces per month. Furthermore, it is backed by the commitment of Tenkai, a trusted brand in the industry.
Customization:
Copper Plate Heat Exchanger
- Brand Name: Tenkai
- Place of Origin: China
- Certification: ISO9001
- Minimum Order Quantity: 1 wooden package
- Price: Competitive

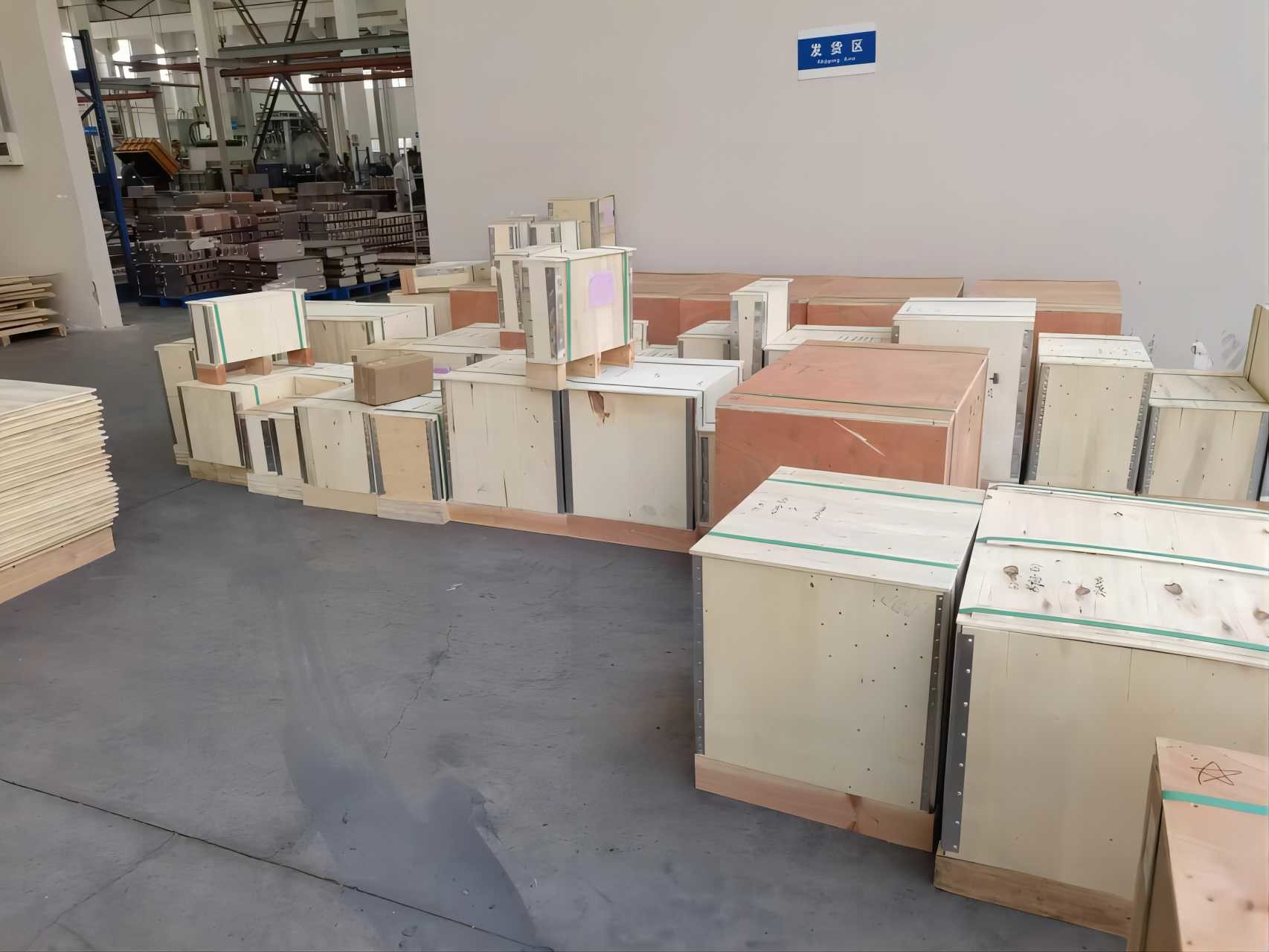

- Packaging Details: Wooden Package
- Delivery Time: Within five working days
- Payment Terms: T/T, L/C, D/P
- Supply Ability: 5500 Pieces/Month
- Warranty: One Year
- Max Temperature: 225℃
- Design Temperature: -196℃→ 225℃
- Type: Plate Heat Exchanger
- Flow Rate: 8→300m³/h
- Special Feature: Brazed Plate Evaporator, Heat Pump Heat Exchanger, Copper Material Plate Heat Exchanger
Support and Services:
Copper Plate Heat Exchanger technical support and services include:
- Technical assistance with installation of the product.
- Assistance with troubleshooting issues.
- Access to maintenance and repair services.
- Access to spare parts.
- Training on proper operation and maintenance.
- Replacement parts and components.
