Copper Plate Heat Exchanger is a refrigeration plate heat exchanger that is designed to provide efficient heat exchange between two fluids. It is a water to water plate heat exchanger with a design pressure of 4.5MPa that can be connected in various ways such as SAE flanged, flanged, male thread, female thread and soldering. This plate cooler heat exchanger is capable of withstanding temperatures ranging from -196℃ to 225℃, making it a great option for many industrial applications. It is also highly resistant to corrosion and offers maximum pressure of up to 4.5MPa, making it an ideal choice for a wide range of industries.
Features:
- Product Name: Copper Plate Heat Exchanger
- Connection Type: SAE Flanged, Flanged, Male Thread, Female Thread, Soldering
- Design Pressure: Max 4.5Mpa
- Max Pressure: 4.5Mpa
- Design Temperature: -196℃→ 225℃
- Max Temperature: 225℃
- Special Feature: Brazed Plate Evaporator, Copper Material Plate Heat Exchanger, Plate Cooler Heat Exchanger
Technical Parameters:
| Parameter |
Value |
| Material |
Copper |
| Max Temperature |
225℃ |
| Flow Rate |
8→300m³/h |
| Connection Type |
SAE Flanged, Flanged, Male Thread, Female Thread, Soldering |
| Warranty |
One Year |
| Type |
Plate Heat Exchanger |
| Design Temperature |
-196℃→ 225℃ |
| HS CODE |
8419500090 |
| Size |
Customizable |
| Design Pressure |
Max 4.5Mpa |
| TYPE |
B(mm |
C(mm |
D(mm) |
E(mm) |
Thickness
(mm)
|
Weight(Kg) |
Max Flow (m3/h) |
Design Pressure (Mpa) |
| SB14 |
77 |
42 |
206 |
172 |
9+2.3N |
0.7+0.06N |
8 |
1/3/4.5 |
| SB16 |
78 |
42 |
208 |
172 |
9+2.24N |
0.6+0.049N |
8 |
1/3/4.5 |
| SB18 |
95 |
50 |
210 |
165 |
7+3.1N |
0.7+0.06N |
8 |
1 |
| SB20B |
78 |
42 |
318 |
282 |
9+2.3N |
1+0.08N |
8 |
3/4.5 |
| SB20C |
77 |
42 |
313 |
278 |
10+1.28N |
0.9+0.07N |
8 |
3/4.5 |
| SB26 |
111 |
50 |
310 |
250 |
10+2.32N |
1.3+0.12N |
18 |
3/4.5 |
| SB26F |
107 |
50 |
307 |
250 |
10+1.98N |
1.3+0.1N |
18 |
3/4.5 |
| SB28B |
120 |
72 |
290 |
243 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB28C |
120 |
63 |
290 |
234 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB30 |
126 |
70 |
307 |
250 |
10+2.35N |
2.2+0.16N |
18 |
3/4.5 |
| SB52A |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.21N |
18 |
3/4.5 |
| SB52B |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.19N |
18 |
3/4.5 |
| SB53 |
106 |
50 |
522 |
466 |
9+2.1N |
2.6+0.27N |
18 |
3/4.5 |
| SB62A |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB62B |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB65 |
125 |
65 |
540 |
480 |
11+2.28N |
2.5+0.228N |
18 |
3/4.5 |
| SB95A |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB95B |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB120A |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB120B |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |

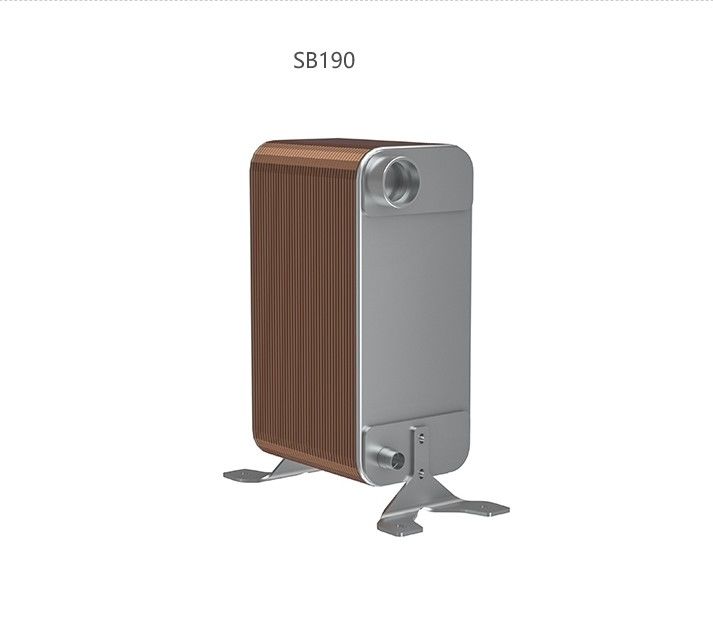

| SB190 |
303 |
179 |
695 |
567 |
13+2.3N |
12+0.61N |
100 |
1.6/2.1/3 |
| SB200A |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200B |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200E |
320 |
207 |
742 |
624 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB202 |
319 |
188 |
741 |
603 |
16+2.85N |
13+0.957N |
100 |
2.1/3 |
| SB300 |
370 |
118(95.5) |
995 |
861(816) |
17+2.675N |
20+1.26N |
200 |
1.6/2.1/3 |
| SB500 |
304 |
179 |
982 |
854 |
17+2.29N |
26.6+0.93N |
200 |
2.1/3 |
| SB01 |
390 |
204 |
1320 |
1132 |
22+2.75N |
30+1.8N |
300 |
3/4.5 |
Applications:
The Copper Plate Heat Exchanger is manufactured by Tenkai with ISO certification. It is made of copper material with customizable size. The minimum order quantity is 1 wooden package and the price is competitive. The packaging details are wooden package and the delivery time is within five working days. It supports T/T, L/C, D/P payment terms and the supply ability is 4500 Pieces/Month. The warranty is one year and the connection type is SAE Flanged, Flanged, Male Thread, Female Thread, Soldering. The maximum temperature it can tolerate is 225℃.
The Copper Plate Heat Exchanger is widely used in heat pump heat exchanger. It has a long service life and excellent heat transfer performance, making it ideal for various applications. It is also highly durable and reliable, which makes it a great choice for industrial use.
For those seeking an efficient heat exchanger, the Copper Plate Heat Exchanger is the perfect choice. It is easy to install and maintain, making it a great choice for both commercial and residential applications. With its excellent performance and durability, it is sure to provide years of reliable service.
Customization:
Our Copper Plate Heat Exchanger is an ideal choice for your heat pump or plate cooler heat exchanger needs. It is Copper Brazed Plate Heat Exchanger with maximum temperature of 225℃ and maximum pressure of 4.5Mpa, and a flow rate of 8→300m³/h. It also features a competitive price and superior quality.
Brand Name: Tenkai
Place of Origin: China
Certification: ISO
Minimum Order Quantity: 1 wooden package
Price: Competitive
Packaging Details: Wooden Package
Delivery Time: Within five working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 8000 Pieces/Month
Max Temperature: 225℃
Design Pressure: Max 4.5Mpa
Flow Rate: 8→300m³/h
Max Pressure: 4.5Mpa
Material: Copper
Support and Services:
Copper Plate Heat Exchanger Technical Support and Service
We provide a range of technical support and service options to ensure the optimal performance of your copper plate heat exchanger. Our knowledgeable technicians are available to help you troubleshoot any issues you may encounter.
We also offer preventive maintenance services for copper plate heat exchangers, which can help to identify potential issues before they become costly problems. Our technicians are trained to inspect your heat exchangers for signs of wear and deterioration.
We provide spare parts and components for copper plate heat exchangers, including gaskets, seals, and other components. We also provide replacement parts for copper plate heat exchangers that have been damaged or worn out.
We are committed to providing the highest quality of technical support and service for your copper plate heat exchangers. We work hard to ensure that our customers receive the best possible service.
Packing and Shipping:
Packaging and Shipping for Copper Plate Heat Exchanger
Copper Plate Heat Exchangers will be shipped on wooden pallets and secured with strong cords and shrink wrapping. The pallets will be placed in heavy-duty cardboard boxes for further protection during transit. A full packing list will be included with each shipment.
