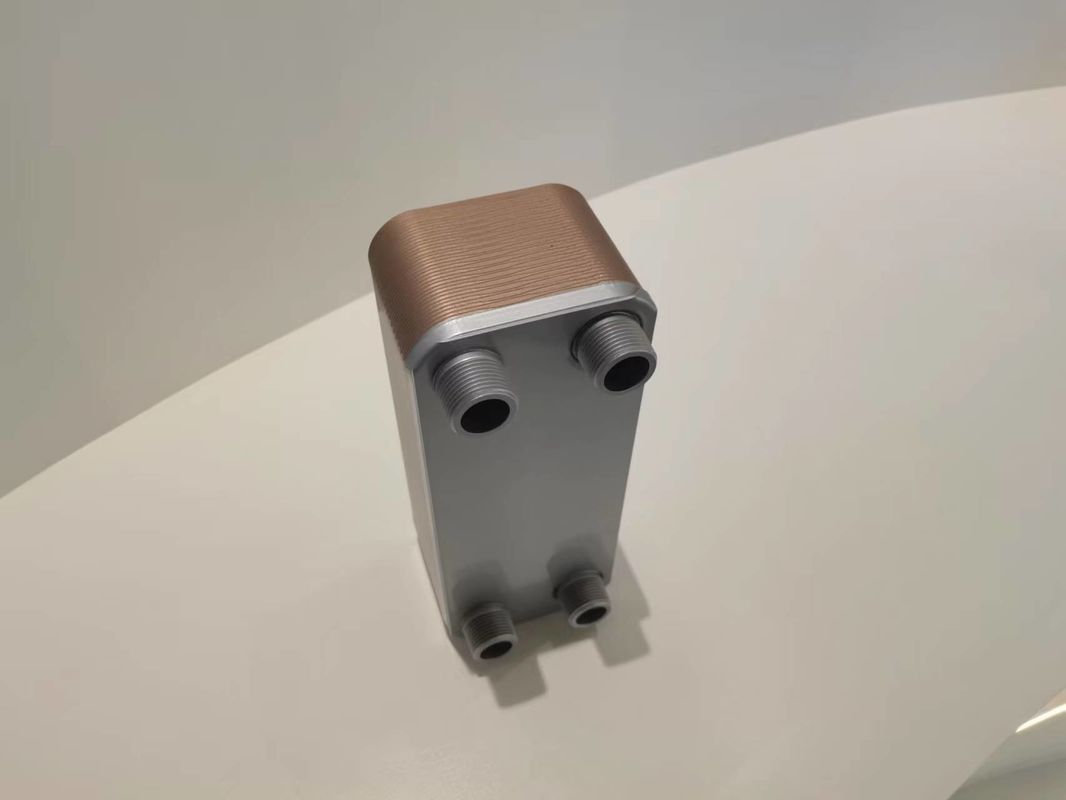

Copper Plate Heat Exchanger is a kind of efficient heat exchanger made of copper material. It is designed to have high performance in heat exchanging between two mediums with a wide range of temperatures. It is widely used in various industries such as heating, cooling, condensing and recovering heat energy.
The copper plate heat exchanger is a kind of brazed plate heat exchanger, which is made of copper material and has great thermal conductivity, excellent corrosion resistance, and a long service life. It can work in a temperature range of -196℃ to 225℃ and the design pressure can reach up to 4.5Mpa. It can effectively transfer heat and can be used in a variety of applications to provide efficient and reliable heat transfer solutions.
The copper plate heat exchanger is very suitable for the transfer of heat energy in many industries, such as chemical industry, petroleum industry, metallurgy, paper industry, food industry, etc. It is an ideal choice for any application that requires high temperature and pressure conditions. It is also designed to be easy to install and maintain, and can provide a great heat transfer performance.
Features:
- Product Name: Copper Plate Heat Exchanger
- Design Temperature: -196℃→ 225℃
- HS CODE: 8419500090
- Type: Copper Brazed Plate Heat Exchanger
- Material: Copper Material Plate Heat Exchanger
- Flow Rate: 8→300m³/h
- Max Temperature: 225℃
Technical Parameters:
| Attribute |
Parameter |
| Flow Rate |
8→300m³/h |
| Size |
Customizable |
| Max Pressure |
4.5Mpa |
| Material |
Copper |
| Design Pressure |
Max 4.5Mpa |
| Connection Type |
SAE Flanged, Flanged, Male Thread, Female Thread, Soldering |
| Type |
Plate Heat Exchanger |
| HS CODE |
8419500090 |
| Warranty |
One Year |
| Max Temperature |
225℃ |
| Keywords |
Chiller Plate Heat Exchanger, Heating Plate Heat Exchanger, Heat Pump Heat Exchanger |
| TYPE |
B(mm |
C(mm |
D(mm) |
E(mm) |
Thickness
(mm)
|
Weight(Kg) |
Max Flow (m3/h) |
Design Pressure (Mpa) |
| SB14 |
77 |
42 |
206 |
172 |
9+2.3N |
0.7+0.06N |
8 |
1/3/4.5 |
| SB16 |
78 |
42 |
208 |
172 |
9+2.24N |
0.6+0.049N |
8 |
1/3/4.5 |
| SB18 |
95 |
50 |
210 |
165 |
7+3.1N |
0.7+0.06N |
8 |
1 |
| SB20B |
78 |
42 |
318 |
282 |
9+2.3N |
1+0.08N |
8 |
3/4.5 |
| SB20C |
77 |
42 |
313 |
278 |
10+1.28N |
0.9+0.07N |
8 |
3/4.5 |
| SB26 |
111 |
50 |
310 |
250 |
10+2.32N |
1.3+0.12N |
18 |
3/4.5 |
| SB26F |
107 |
50 |
307 |
250 |
10+1.98N |
1.3+0.1N |
18 |
3/4.5 |
| SB28B |
120 |
72 |
290 |
243 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB28C |
120 |
63 |
290 |
234 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB30 |
126 |
70 |
307 |
250 |
10+2.35N |
2.2+0.16N |
18 |
3/4.5 |
| SB52A |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.21N |
18 |
3/4.5 |
| SB52B |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.19N |
18 |
3/4.5 |
| SB53 |
106 |
50 |
522 |
466 |
9+2.1N |
2.6+0.27N |
18 |
3/4.5 |
| SB62A |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB62B |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB65 |
125 |
65 |
540 |
480 |
11+2.28N |
2.5+0.228N |
18 |
3/4.5 |
| SB95A |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB95B |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB120A |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB120B |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB190 |
303 |
179 |
695 |
567 |
13+2.3N |
12+0.61N |
100 |
1.6/2.1/3 |
| SB200A |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200B |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200E |
320 |
207 |
742 |
624 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB202 |
319 |
188 |
741 |
603 |
16+2.85N |
13+0.957N |
100 |
2.1/3 |
| SB300 |
370 |
118(95.5) |
995 |
861(816) |
17+2.675N |
20+1.26N |
200 |
1.6/2.1/3 |
| SB500 |
304 |
179 |
982 |
854 |
17+2.29N |
26.6+0.93N |
200 |
2.1/3 |
| SB01 |
390 |
204 |
1320 |
1132 |
22+2.75N |
30+1.8N |
300 |
3/4.5 |
Applications:
Copper Plate Heat Exchanger - Tenkai Copper Brazed Plate Heat Exchanger
Tenkai's Copper Plate Heat Exchanger is a brazed plate evaporator which is manufactured in China and certified by ISO, with a minimum order quantity of 1 wooden package. It is competitively priced and delivered within five working days. Payment terms include T/T, L/C, D/P, and the supply ability is 8000 Pieces/Month.
The design pressure of the Tenkai Copper Brazed Plate Heat Exchanger is Max 4.5Mpa and its HS CODE is 8419500090. The maximum temperature is 225℃, and its connection type includes SAE Flanged, Flanged, Male Thread, Female Thread, Soldering. Its flow rate is up to 300 m³/h. Packaging Details: Wooden Package.
Customization:
Customized Copper Plate Heat Exchanger
Brand Name: Tenkai
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 1 wooden package
Price: Competitive
Packaging Details: Wooden Package
Delivery Time: Within five working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 6600 Pieces/Month
Warranty: One Year
Size: Customizable
Design Pressure: Max 4.5Mpa
Flow Rate: 8→300m³/h
Connection Type: SAE Flanged, Flanged, Male Thread, Female Thread, Soldering
Special Features
- Brazed plate evaporator
- Water to water plate heat exchanger
- Chiller plate heat exchanger
Support and Services:
Copper Plate Heat Exchanger Technical Support and Service
Copper Plate Heat Exchanger is a reliable and efficient product to process heat exchange. Our experienced and professional technical team is available to provide support and service to ensure that your Copper Plate Heat Exchanger offers optimal performance.
Our technical support team is available to answer any questions about the installation, operation and maintenance of the Copper Plate Heat Exchanger. We also provide technical advice and assistance with troubleshooting and problem-solving. Our customer service team is available to provide support with ordering, shipping and warranty information.
We also offer comprehensive maintenance services for Copper Plate Heat Exchanger. Our team can perform routine maintenance and repairs to ensure that your unit is operating at peak performance. In addition, we offer replacement parts for the Copper Plate Heat Exchanger, including pumps, valves, gaskets, and other components.
If you have any questions or concerns about the Copper Plate Heat Exchanger, our technical support and customer service team is available to provide assistance. We are committed to providing the highest quality of technical support and service for your Copper Plate Heat Exchanger.
Packing and Shipping:
Packaging and Shipping for Copper Plate Heat Exchanger:
- The copper plate heat exchanger will be securely packaged in a corrugated cardboard box.
- The box will be filled with foam to provide extra protection and prevent any damage during shipping.
- The box will be sealed with reinforced tape for additional safety.
- The package will be shipped via a reliable courier service and will be tracked until delivery.
