Efficient Cooling and Heating with Copper Plate Heat Exchanger For Chemical Processing
Product Description:

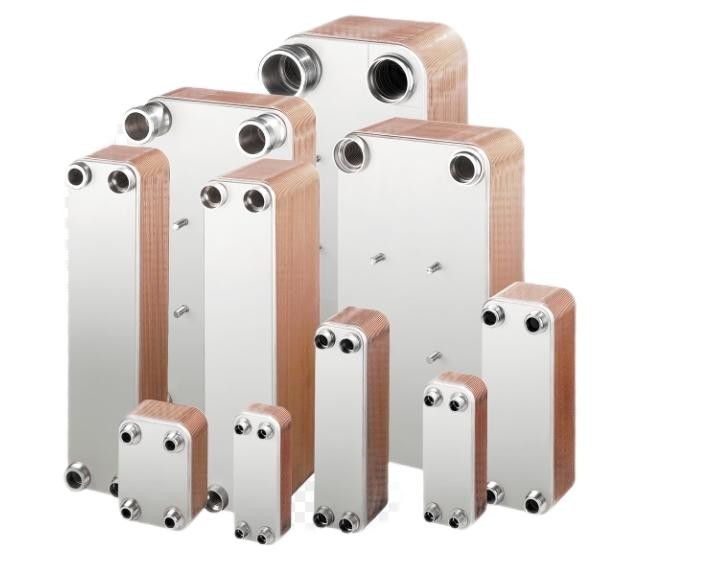

Copper Plate Heat Exchanger is a kind of heating plate heat exchanger which is widely used in industrial chillers. It is made of copper with high temperature resistance and can be used in design temperature from -196℃ to 225℃. With its advanced design, it can be used in design pressure up to 4.5Mpa. Besides, it is customizable in size and available in SAE Flanged, Flanged, Male Thread, Female Thread, Soldering connection types. Customers can enjoy one year warranty for this copper plate heat exchanger.
Features:
- Product Name: Copper Plate Heat Exchanger
- Max Pressure: 4.5Mpa
- Design Temperature: -196℃→ 225℃
- Design Pressure: Max 4.5Mpa
- Max Temperature: 225℃
- Flow Rate: 8→300m³/h
- Specialty: Heat Pump Heat Exchanger, Refrigeration Plate Heat Exchanger
Technical Parameters:
| Parameters |
Details |
| Type |
Plate Heat Exchanger |
| Size |
Customizable |
| HS CODE |
8419500090 |
| Design Pressure |
Max 4.5Mpa |
| Warranty |
One Year |
| Max Temperature |
225℃ |
| Flow Rate |
8→300m³/h |
| Material |
Copper |
| Connection Type |
SAE Flanged, Flanged, Male Thread, Female Thread, Soldering |
| Design Temperature |
-196℃→ 225℃ |
| TYPE |
B(mm |
C(mm |
D(mm) |
E(mm) |
Thickness
(mm)
|
Weight(Kg) |
Max Flow (m3/h) |
Design Pressure (Mpa) |
| SB14 |
77 |
42 |
206 |
172 |
9+2.3N |
0.7+0.06N |
8 |
1/3/4.5 |
| SB16 |
78 |
42 |
208 |
172 |
9+2.24N |
0.6+0.049N |
8 |
1/3/4.5 |
| SB18 |
95 |
50 |
210 |
165 |
7+3.1N |
0.7+0.06N |
8 |
1 |
| SB20B |
78 |
42 |
318 |
282 |
9+2.3N |
1+0.08N |
8 |
3/4.5 |
| SB20C |
77 |
42 |
313 |
278 |
10+1.28N |
0.9+0.07N |
8 |
3/4.5 |
| SB26 |
111 |
50 |
310 |
250 |
10+2.32N |
1.3+0.12N |
18 |
3/4.5 |
| SB26F |
107 |
50 |
307 |
250 |
10+1.98N |
1.3+0.1N |
18 |
3/4.5 |
| SB28B |
120 |
72 |
290 |
243 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB28C |
120 |
63 |
290 |
234 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB30 |
126 |
70 |
307 |
250 |
10+2.35N |
2.2+0.16N |
18 |
3/4.5 |
| SB52A |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.21N |
18 |
3/4.5 |
| SB52B |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.19N |
18 |
3/4.5 |
| SB53 |
106 |
50 |
522 |
466 |
9+2.1N |
2.6+0.27N |
18 |
3/4.5 |
| SB62A |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB62B |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB65 |
125 |
65 |
540 |
480 |
11+2.28N |
2.5+0.228N |
18 |
3/4.5 |
| SB95A |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB95B |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB120A |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB120B |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB190 |
303 |
179 |
695 |
567 |
13+2.3N |
12+0.61N |
100 |
1.6/2.1/3 |

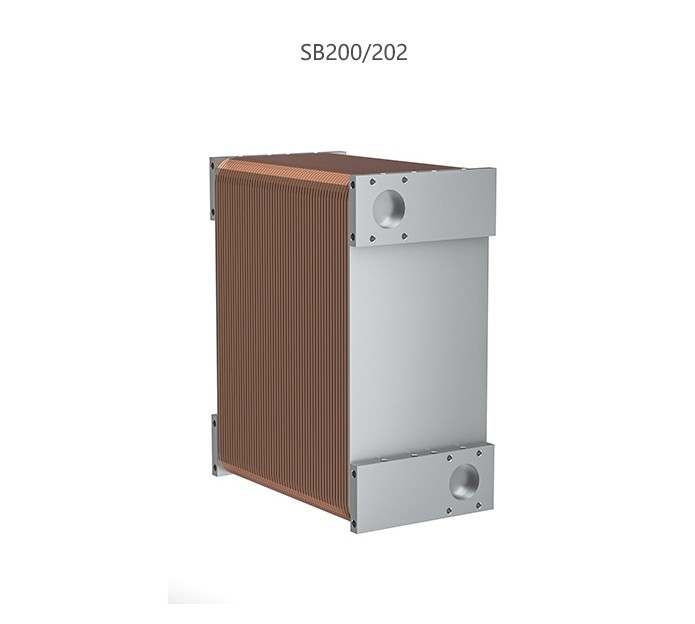

| SB200A |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200B |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200E |
320 |
207 |
742 |
624 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB202 |
319 |
188 |
741 |
603 |
16+2.85N |
13+0.957N |
100 |
2.1/3 |
| SB300 |
370 |
118(95.5) |
995 |
861(816) |
17+2.675N |
20+1.26N |
200 |
1.6/2.1/3 |
| SB500 |
304 |
179 |
982 |
854 |
17+2.29N |
26.6+0.93N |
200 |
2.1/3 |
| SB01 |
390 |
204 |
1320 |
1132 |
22+2.75N |
30+1.8N |
300 |
3/4.5 |
Applications:
Tenkai Copper Brazed Plate Heat Exchanger is an ideal choice for heating, cooling, condensing and evaporating in various industrial and commercial applications. Our exchanger is made of top quality copper and is designed to withstand temperatures ranging from -196℃ to 225℃ and pressure up to 4.5Mpa. It is certified by ISO, and comes with competitive price, minimum order quantity of 1 wooden package, and a supply ability of 8000 pieces/month. The HS Code is 8419500090. Its wooden package ensures safe and secure delivery within five working days. We accept payment through T/T, L/C, D/P.
Customization:
Customized Copper Plate Heat Exchanger Services by Tenkai
Brand Name: Tenkai
Place of Origin: China
Certification: ISO9001
Minimum Order Quantity: 1 wooden package
Price: Competitive
Packaging Details: Wooden Package
Delivery Time: Within five working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 4200 Pieces/Month
Flow Rate: 8→300m³/h
HS CODE: 8419500090
Material: Copper
Max Temperature: 225℃
Max Pressure: 4.5Mpa
We offer customized copper plate heat exchanger services for heat pump heat exchanger, chiller plate heat exchanger, water to water plate heat exchanger.
Support and Services:
Copper Plate Heat Exchanger Technical Support and Services
We provide the highest quality technical support and services for our Copper Plate Heat Exchanger. This includes:
- Expert advice and counsel to help you make the best selection for your application.
- Installation and maintenance assistance.
- On-site consultation and training.
- A comprehensive warranty and customer service program.
- Access to spare parts and components.
- Ongoing technical support and assistance.
We are committed to providing the highest level of technical support and service for our customers. If you have any questions or need assistance with your Copper Plate Heat Exchanger, please don't hesitate to contact us.
Packing and Shipping:
Packaging and Shipping for Copper Plate Heat Exchanger
The Copper Plate Heat Exchanger will be securely packaged in a cardboard box with bubble wrap and foam cushioning to ensure the product is not damaged during shipping. The box will be labeled with the product name and shipping details before being sealed with packing tape.
The Copper Plate Heat Exchanger will be shipped via a reliable courier service. The shipment will be tracked and insured to ensure safe and timely delivery.
