Product Description:
Copper Brazed Plate Heat Exchanger is a type of plate heat exchanger that is used for water to water applications. It offers superior performance and maximum heat transfer efficiency, while providing a compact and space-saving design. This heat exchanger is designed with a brazed plate evaporator that is capable of supporting flow rate up to 300m³/h and design temperatures ranging from -196℃ to 225℃. It is also able to withstand a maximum temperature of 225℃. This heat exchanger is constructed of high-quality copper to ensure long-term reliability and durability. It comes with a one-year warranty and is perfect for a wide range of applications.
Features:
- Product Name: Copper Plate Heat Exchanger
- Max Pressure: 4.5Mpa
- Flow Rate: 8→300m³/h
- Material: Copper
- Size: Customizable
- Warranty: One Year
- Applications: Water to Water Plate Heat Exchanger, Heating Plate Heat Exchanger
Technical Parameters:
| Parameter |
Value |
| Flow Rate |
8→300m³/h |
| Material |
Copper |
| Max Pressure |
4.5Mpa |
| Type |
Plate Heat Exchanger |
| Design Pressure |
Max 4.5Mpa |
| Max Temperature |
225℃ |
| Connection Type |

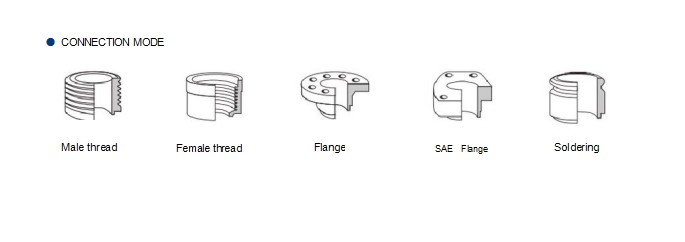

SAE Flanged, Flanged, Male Thread, Female Thread, Soldering |
| HS CODE |
8419500090 |
| Size |
Customizable |
| Warranty |
One Year |
| TYPE |
B(mm |
C(mm |
D(mm) |
E(mm) |
Thickness
(mm)
|
Weight(Kg) |
Max Flow (m3/h) |
Design Pressure (Mpa) |
| SB14 |
77 |
42 |
206 |
172 |
9+2.3N |
0.7+0.06N |
8 |
1/3/4.5 |
| SB16 |
78 |
42 |
208 |
172 |
9+2.24N |
0.6+0.049N |
8 |
1/3/4.5 |
| SB18 |
95 |
50 |
210 |
165 |
7+3.1N |
0.7+0.06N |
8 |
1 |
| SB20B |
78 |
42 |
318 |
282 |
9+2.3N |
1+0.08N |
8 |
3/4.5 |
| SB20C |
77 |
42 |
313 |
278 |
10+1.28N |
0.9+0.07N |
8 |
3/4.5 |
| SB26 |
111 |
50 |
310 |
250 |
10+2.32N |
1.3+0.12N |
18 |
3/4.5 |
| SB26F |
107 |
50 |
307 |
250 |
10+1.98N |
1.3+0.1N |
18 |
3/4.5 |
| SB28B |
120 |
72 |
290 |
243 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB28C |
120 |
63 |
290 |
234 |
10+2.36N |
1.5+0.133N |
18 |
3/4.5 |
| SB30 |
126 |
70 |
307 |
250 |
10+2.35N |
2.2+0.16N |
18 |
3/4.5 |
| SB52A |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.21N |
18 |
3/4.5 |
| SB52B |
111 |
50 |
526 |
466 |
9+2.32N |
2.6+0.19N |
18 |
3/4.5 |
| SB53 |
106 |
50 |
522 |
466 |
9+2.1N |
2.6+0.27N |
18 |
3/4.5 |
| SB62A |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB62B |
120 |
63 |
528 |
470 |
10+2.35N |
2.379+0.194N |
18 |
3/4.5 |
| SB65 |
125 |
65 |
540 |
480 |
11+2.28N |
2.5+0.228N |
18 |
3/4.5 |
| SB95A |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB95B |
189 |
92 |
616 |
519 |
11+2.7N |
7.8+0.44N |
42 |
3/4.5 |
| SB120A |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB120B |
246 |
174 |
528 |
456 |
10+2.34N |
7.2+0.52N |
42 |
3/4.5 |
| SB190 |
303 |
179 |
695 |
567 |
13+2.3N |
12+0.61N |
100 |
1.6/2.1/3 |
| SB200A |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200B |
320 |
188 |
742 |
603 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB200E |
320 |
207 |
742 |
624 |
14+2.7N |
13+0.67N |
100 |
1.5/2.1/3 |
| SB202 |
319 |
188 |
741 |
603 |
16+2.85N |
13+0.957N |
100 |
2.1/3 |
| SB300 |
370 |
118(95.5) |
995 |
861(816) |
17+2.675N |
20+1.26N |
200 |
1.6/2.1/3 |
| SB500 |
304 |
179 |
982 |
854 |
17+2.29N |
26.6+0.93N |
200 |
2.1/3 |
| SB01 |
390 |
204 |
1320 |
1132 |
22+2.75N |
30+1.8N |
300 |
3/4.5 |
