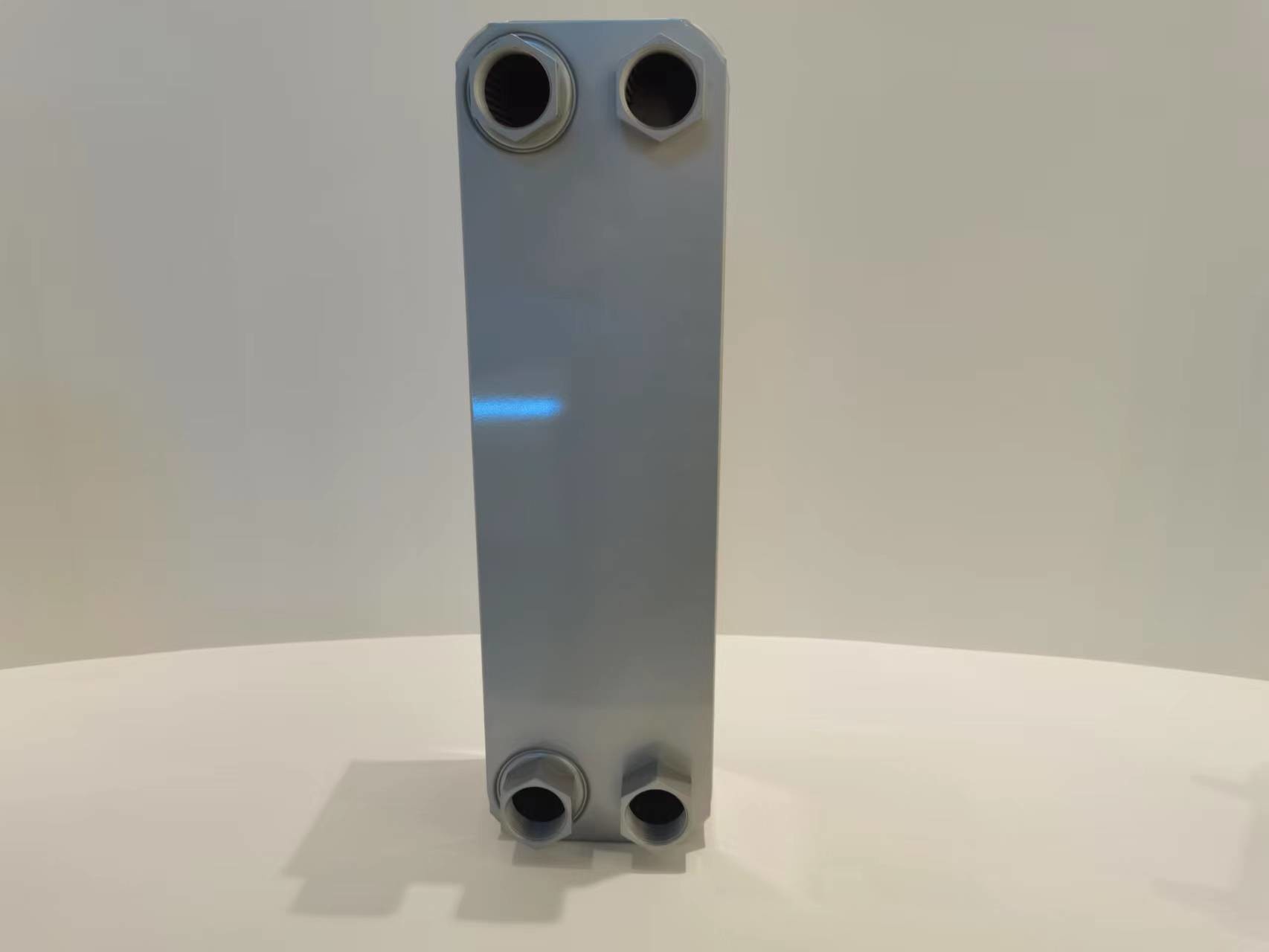

Name: 14Mpa Ultra High Pressure Plate Heat Exchanger Brazed Double Splint Design UHP95BV
Brand: Tenkai
SKU: UHP95BV
Rating: 4.6 (200 reviews)

14Mpa Ultra High Pressure Plate Heat Exchanger Brazed Double Splint Design UHP95BV

Basic Information

Place of Origin:	CHINA
Brand Name:	Tenkai
Certification:	ISO9001-2015
Model Number:	UHP95BV

Minimum Order Quantity:	1pcs
Price:	Negotiate
Packaging Details:	Wooden Box Package
Delivery Time:	Within one week
Payment Terms:	L/C, T/T, D/P
Supply Ability:	300pcs/Day

Get Best Price Contact Now

Detail Information

Splint Material:	Q235	Operating Temperature:	200 ℃
Bolt:	M16, M20	Connection Mode:	Male Thread , Female Thread, Flange, SAE Flange, Soldering
Warranty Period:	One Year	Structure:	Plate Heat Exchanger
Design Pressure:	14Mpa	Test Pressure:	21Mpa
Max Flow:	42m³/h
Highlight:	14Mpa High Pressure Plate Heat Exchanger , Double Splint Plate Heat Exchanger , 14Mpa Heat Exchanger Brazed

Product Description

TYPE	B(mm)	C(mm)	D(mm)	E(mm)	THICKNESS(mm)	P ( mm )	MAX FLOW (m3/h)
UHP95BV	252	92	685	519	11+2.7N	30	42

Introduction :

ULTRA HIGH PRESSURE BRAZED Plate Heat Exchanger adopt double splint design , make its compact structure and more pressure-bearing . It can use in heat pump system with R722(CO₂) refrigerating fluid .

Applicable temperature : 200 ℃

Design Pressure : 14 Mpa

Test Pressure : 21 Mpa

Remark : splint material is Q235 , bolt for M16 , M20 , and available for suited lifting lug , footing , etc .

Workshop :

14Mpa Ultra High Pressure Plate Heat Exchanger Brazed Double Splint Design UHP95BV 0

Test Room :

14Mpa Ultra High Pressure Plate Heat Exchanger Brazed Double Splint Design UHP95BV 1

Package Area :

14Mpa Ultra High Pressure Plate Heat Exchanger Brazed Double Splint Design UHP95BV 2
