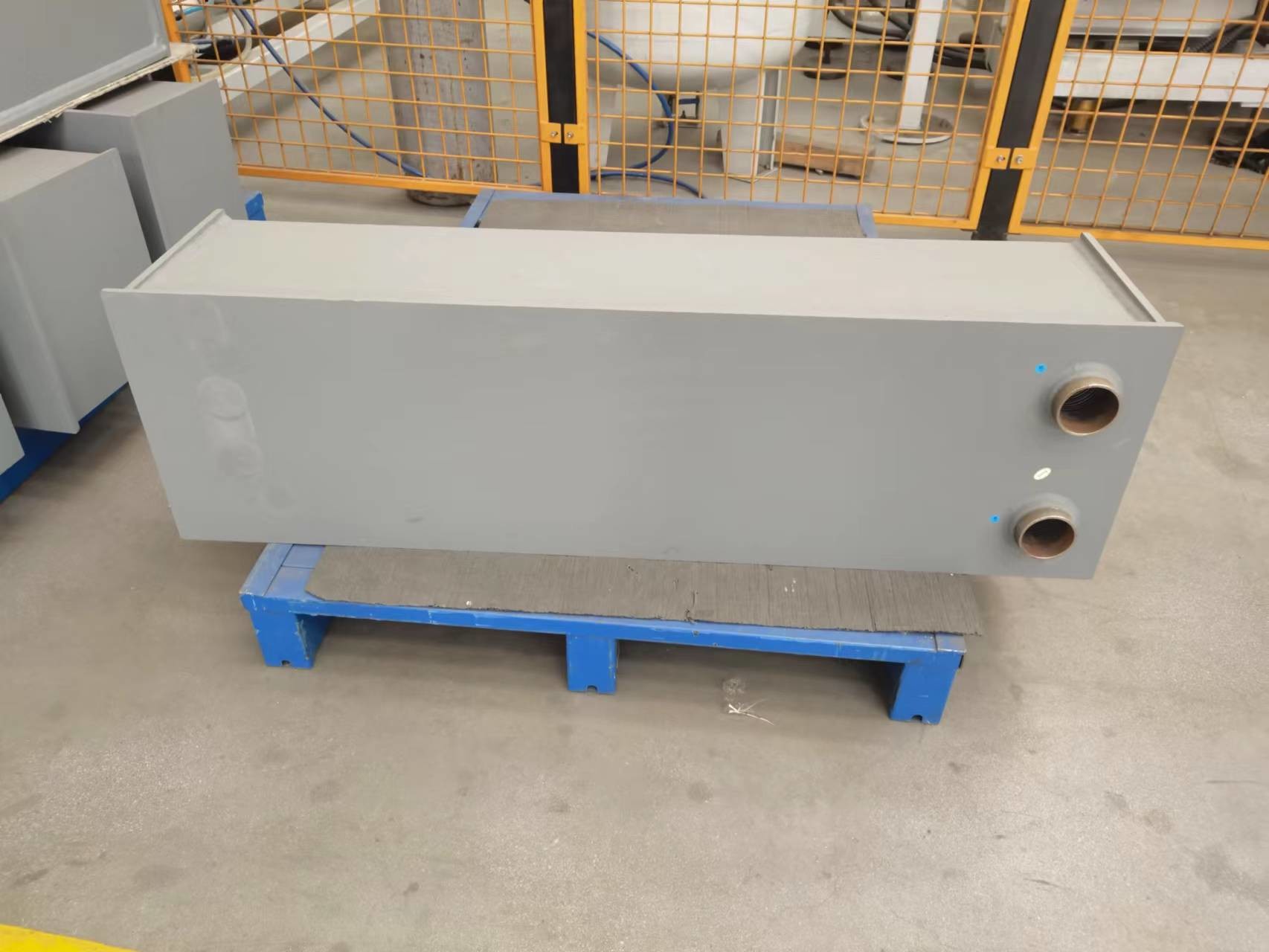

Cooling Systems In The Paper Industry Stainless Steel Plate Heat Exchanger Leak Protection
| TYPE |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
THICKNESS(mm) |
WEIGHT(Kg) |
MAX FLOW m3/h) |
DESIGN PRESSURE (Mpa) |
| BT350BR |
318 |
160 |
1060 |
912 |
44+2.23N |
79.3+1.31N(N<132)
82.23+1.404N(N≥132)
|
50 |
0.5 |
|
|
|
Paper Industry :
Cooling of Black Liquor
Heating and Cooling of Bleaching Salt and Alkali Solution
Heat Recovery of Waste Liquor from Glass Paper
Heating of Acid for Cooking
Main Application Area :
Residential heating areas
Mechanical cooling applications
Power plant cooling systems
Cooling systems for piston and turbine operations
Marine and engine cooling and preheating systems
Cooling and heat recovery systems in the sugar industry
Cooling and heat recovery systems in food oil processing
Cooling systems in the chemical industry
Cooling systems in the pharmaceutical industry
Cooling and heating systems in surface treatment
Cooling systems in the paper industry
Cooling and heating systems in the textile industry
Cooling systems in the steel industry
Cooling systems in the automotive industry
Care and maintenance :
Uptime maintenance
For equipment that requires maintenance, the heat exchanger should be disassembled in reverse order of installation.
The equipment used in the petroleum and chemical industries should undergo regular maintenance based on the inspection cycle.
If the medium inside the equipment is highly explosive or corrosive, it should be inspected and maintained at least once a year.
For plate heat exchangers used in other industries, it is recommended to perform maintenance every three years if there are no leaks.
Cleaning of the plate
Chemical cleaning method:
Circulate a chemical solution through the heat exchanger to dissolve and flush out the fouling on the surface of the plates.
Mechanical cleaning method:
After disassembling the plates, manually scrub them using a brush.
Comprehensive cleaning method:
For cases where the fouling layer is hard and thick, the comprehensive cleaning method involves softening the fouling layer using a chemical method and then removing the fouling layer using a mechanical method, ensuring a clean and debris-free surface of the plates.
