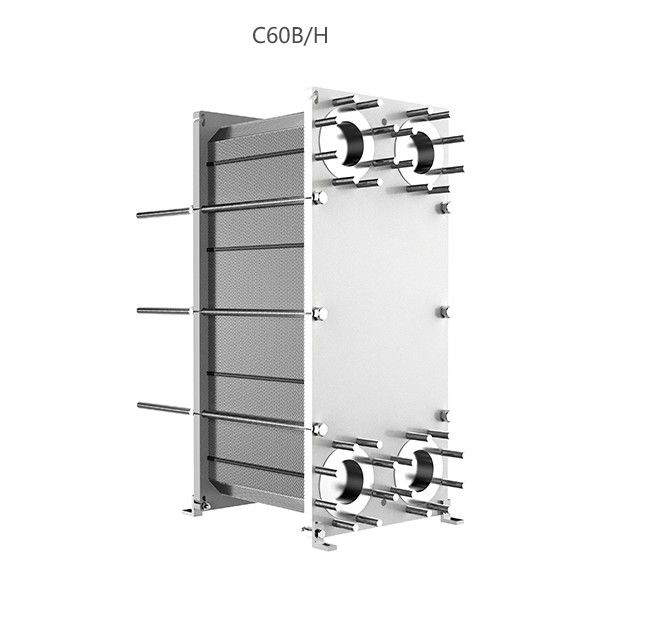

C60B Series Gasket Plate Heat Exchanger Stainless Steel Material Apply to Salt Production in Food Industry
Introduction :
corrugated plates pressed from thin metal sheets and assembled with stainless steel frames and clamping bolts, known for its strong corrosion resistance, The working fluid flows through narrow and serpentine channels formed between two plates, while the hot and cold fluids undergo heat exchange across the plate channels,The multi-stage plate-type pasteurizer, constructed entirely of stainless steel, is extensively utilized in the food industry for high-temperature sterilization of heat-sensitive materials, including milk, soy milk, fruit juice, ice cream, yellow wine, beer, and various other liquid products,In addition, the equipment has also been widely adopted in the pharmaceutical industry and the processing of health beverages. It possesses advantages such as small footprint, simple structure, high heat transfer efficiency, high heat recovery rate, and easy disassembly and assembly. Furthermore, it enables flexible modifications to the plate flow arrangement to meet the requirements of different processes. It represents an equipment that combines high efficiency and energy-saving capabilities in a single unit.
Application :
Salt Production in Food Industry
Sterilization and Cooling in Dairy Products
Sterilization and Cooling in Soy Sauce
Sterilization and Cooling in Vinegar Production
Heating and Cooling of Animal and Vegetable Oils
Heating and Cooling in Beer Production for Beer and Malt Extracts
Sugar Production
Gelatin Concentration, Sterilization, and Cooling
Manufacturing of Sodium Glutamate
Black liquor
Juice
Milk
Salt production line
Beer fermentation
Development :
Heat Exchanger is the energy-efficient equipment which realize heat transfer between materials in two types or above two types fluid with different temperature , make heat transmit from higher temperature to lower temperature of the fluid , and make fluid temperature match stated index in order to reach the require of tech condition , in meanwhile , also the mainly equipment for improving energy utilization rate . It is widely use in heating and ventilation, pressure vessel , water treating equipment, chemical, petroleum, metallurgy, electric power, ship, supply heating, food, refrigeration air conditioner , pharmacy, etc ....
| TYPE |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
Height ( mm ) ( from middle of bottom to ground )(mm) |
MAX.LC
(mm)
|
Connector Path (mm) |
Max Flow (m3/h) |
Design Pressure (Mpa) |
Max Pieces |
| i60B |
N(1.95+X) |
296 |
140 |
827.5 |
640 |
102.5 |
1200 |
50 |
36 |
1.0 |
250 |
| i60H |
N(3.0+X) |
296 |
140 |
827.5 |
640 |
102.5 |
1200 |
50 |
36 |
1.0 |
210 |
| i100B |
N(2.5+X) |
420 |
223 |
957 |
719 |
128 |
1600 |
100 |
140 |
1.0 |
280 |
| i100H |
N(3.95+X) |
420 |
223 |
957 |
719 |
128 |
1600 |
100 |
140 |
1.0 |
200 |
| 150B |
N(2.5+X) |
575 |
298 |
1640 |
1294 |
163.3 |
1500 |
150 |
360 |
1.0 |
260 |
| 150H |
N(3.95+X) |
575 |
298 |
1640 |
1294 |
163.3 |
1500 |
150 |
360 |
1.0 |
180 |
|
|
|
