Cooling Systems In The Chemical Industry Stainless Steel Plate Heat Exchanger
| TYPE |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
THICKNESS(mm) |
WEIGHT(Kg) |
MAX FLOW m3/h) |
DESIGN PRESSURE (Mpa) |
| BT350BR |
318 |
160 |
1060 |
912 |
44+2.23N |
79.3+1.31N(N<132)
82.23+1.404N(N≥132)
|
50 |
0.5 |
|
|
|
Application:
Residential heating areas
Mechanical cooling applications
Power plant cooling systems
Cooling systems for piston and turbine operations
Marine and engine cooling and preheating systems
Cooling and heat recovery systems in the sugar industry
Cooling and heat recovery systems in food oil processing
Cooling systems in the chemical industry
Cooling systems in the pharmaceutical industry
Cooling and heating systems in surface treatment
Cooling systems in the paper industry
Cooling and heating systems in the textile industry
Cooling systems in the steel industry
Cooling systems in the automotive industry
Instruction :

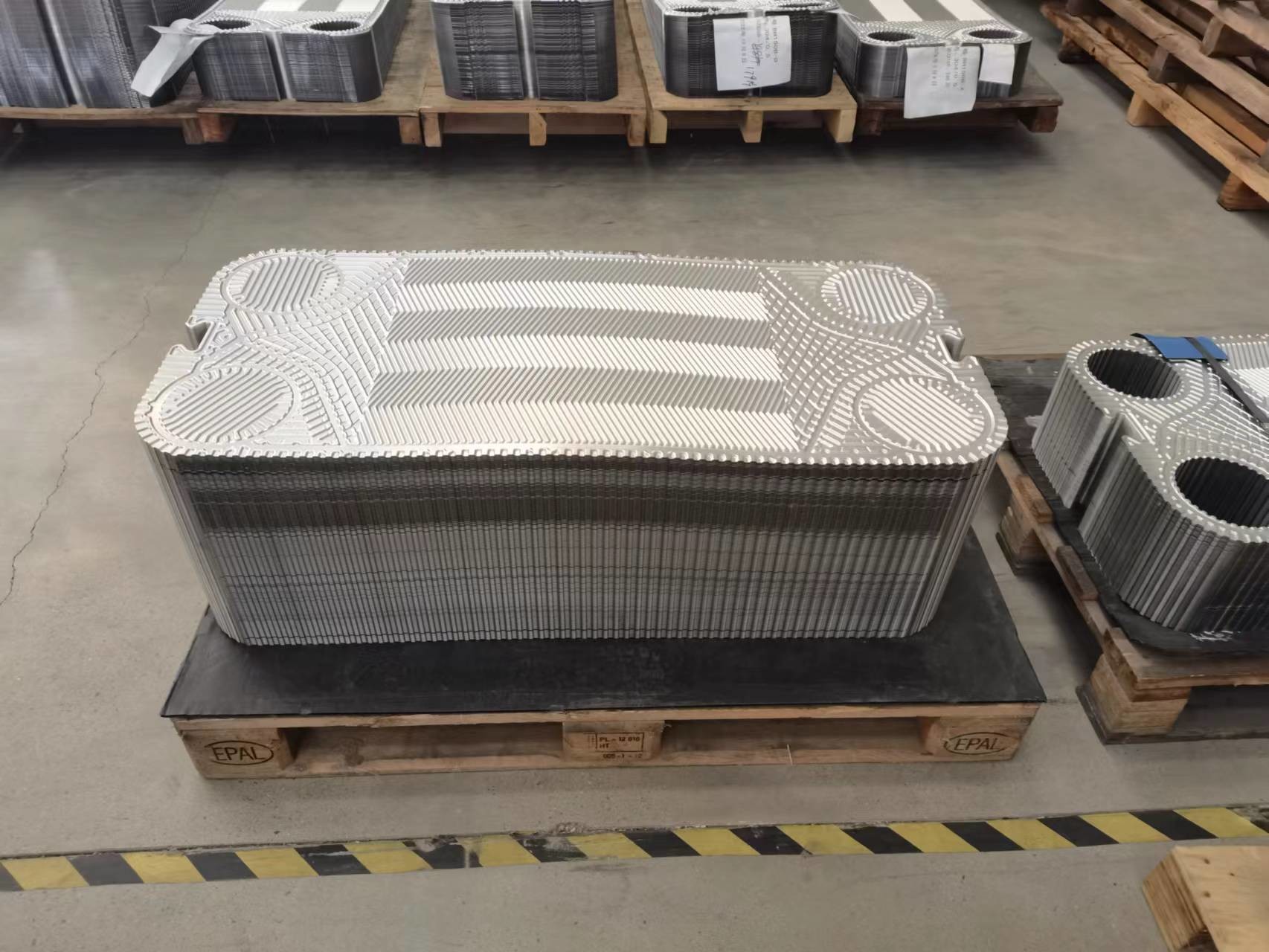

corrugated plates pressed from thin metal sheets and assembled with stainless steel frames and clamping bolts, known for its strong corrosion resistance
The working fluid flows through narrow and serpentine channels formed between two plates, while the hot and cold fluids undergo heat exchange across the plate channels
The multi-stage plate-type pasteurizer, constructed entirely of stainless steel, is extensively utilized in the food industry for high-temperature sterilization of heat-sensitive materials, including milk, soy milk, fruit juice, ice cream, yellow wine, beer, and various other liquid products
In addition, the equipment has also been widely adopted in the pharmaceutical industry and the processing of health beverages. It possesses advantages such as small footprint, simple structure, high heat transfer efficiency, high heat recovery rate, and easy disassembly and assembly. Furthermore, it enables flexible modifications to the plate flow arrangement to meet the requirements of different processes. It represents an equipment that combines high efficiency and energy-saving capabilities in a single unit.
