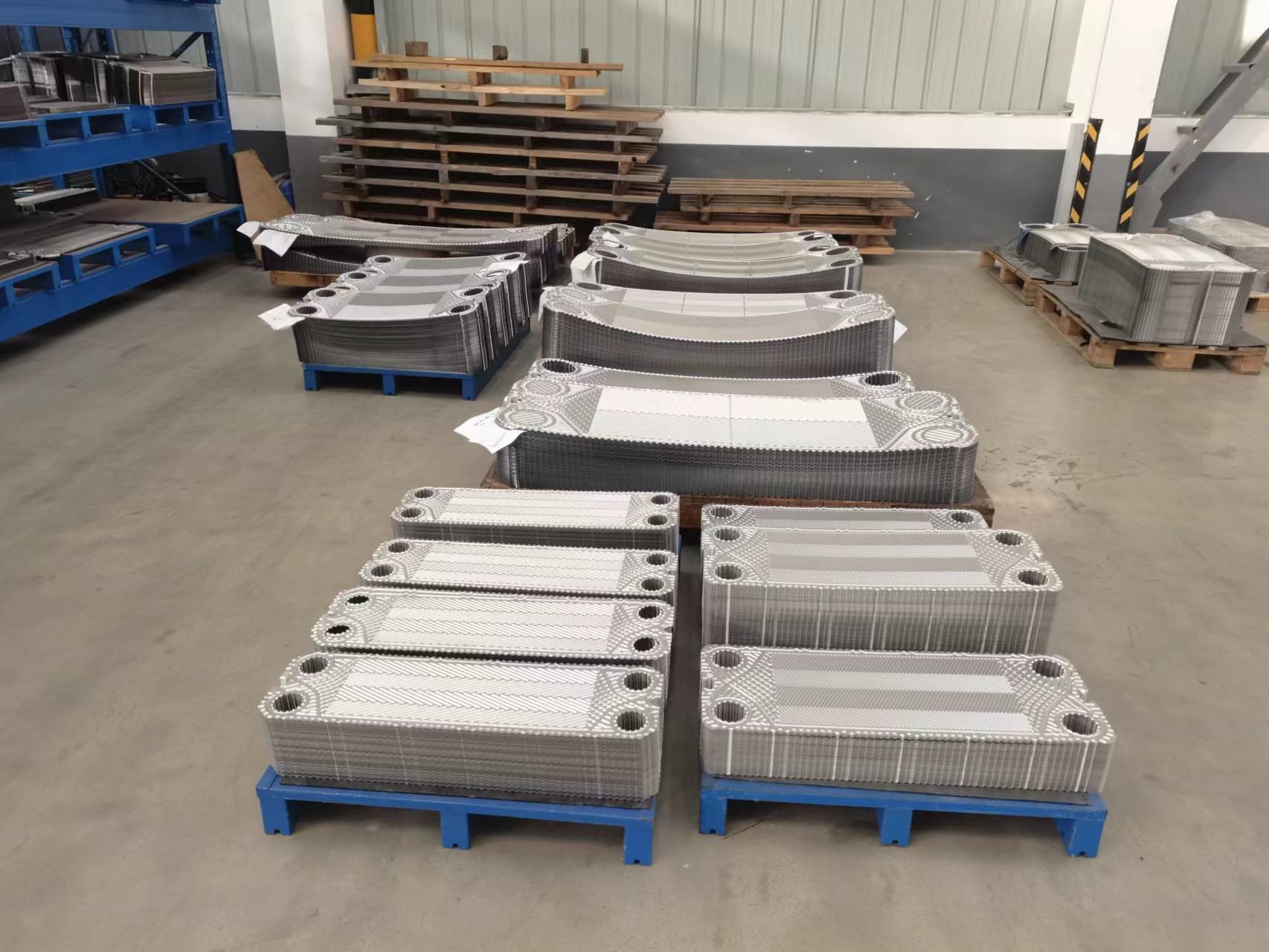

Fusion-Welded Construction Stainless Steel Plate Heat Exchanger High-Pressure Capability
| TYPE |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
THICKNESS(mm) |
WEIGHT(Kg) |
MAX FLOW m3/h) |
DESIGN PRESSURE (Mpa) |
| BT350BR |
318 |
160 |
1060 |
912 |
44+2.23N |
79.3+1.31N(N<132)
82.23+1.404N(N≥132)
|
50 |
0.5 |
|
|
|
Application:
Residential heating areas
Mechanical cooling applications
Power plant cooling systems
Cooling systems for piston and turbine operations
Marine and engine cooling and preheating systems
Cooling and heat recovery systems in the sugar industry
Cooling and heat recovery systems in food oil processing
Cooling systems in the chemical industry
Cooling systems in the pharmaceutical industry
Cooling and heating systems in surface treatment
Cooling systems in the paper industry
Cooling and heating systems in the textile industry
Cooling systems in the steel industry
Cooling systems in the automotive industry
Advantage :
◆High-pressure capability
Box-type fusion-welded plate heat exchangers are designed to handle high-pressure applications. They can effectively accommodate the demands of industrial processes that require heat transfer under elevated pressures.
◆High heat transfer coefficient
Due to the complex and tortuous nature of the plate channels, the fluid continuously changes its direction, velocity, and generates strong turbulence, resulting in a very low liquid film thermal resistance and achieving high heat transfer coefficients. It is more advanced compared
to shell and tube heat exchangers.
◆compact structure
The plate heat exchanger has a channel gap of only 3-5mm, plate thickness ranging from 0.6-0.8mm, requiring minimal maintenance space. Compared to shell and tube heat exchangers, it occupies only 1/5 to 1/100 of the footprint
◆Easy to clean and test
To remove and clean the plates or replace damaged plates and gaskets, simply loosen and remove the tightening bolts.
◆Easy to increase or decrease heat transfer area
To increase or decrease the heat transfer area, simply add or remove the number of plates.
◆A variety of media heat transfer is possible
In a heat exchanger, if multiple media need to be heat exchanged, it can be achieved by installing intermediate partitions. For example, if three media need to be exchanged, the installation of intermediate partitions can facilitate this process.
