Cooling Systems For Piston And Turbine Operations Stainless Steel Plate Heat Exchanger Compact Structure
| TYPE |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
THICKNESS(mm) |
WEIGHT(Kg) |
MAX FLOW m3/h) |
DESIGN PRESSURE (Mpa) |
| BT350BR |
318 |
160 |
1060 |
912 |
44+2.23N |
79.3+1.31N(N<132)
82.23+1.404N(N≥132)
|
50 |
0.5 |
|
|
|
Chemical Industry
Manufacturing of Titanium Dioxide
Alcohol Fermentation
Ammonia Synthesis
Resin Synthesis
Rubber Manufacturing
Cooling of Phosphoric Acid
Cooling of Formaldehyde Solution
Alkali and Carbonate Industry
Electrolytic Alkali Production
Other Main Application Area :
Residential heating areas
Mechanical cooling applications
Power plant cooling systems
Cooling systems for piston and turbine operations
Marine and engine cooling and preheating systems
Cooling and heat recovery systems in the sugar industry
Cooling and heat recovery systems in food oil processing
Cooling systems in the chemical industry
Cooling systems in the pharmaceutical industry
Cooling and heating systems in surface treatment
Cooling systems in the paper industry
Cooling and heating systems in the textile industry
Cooling systems in the steel industry
Cooling systems in the automotive industry

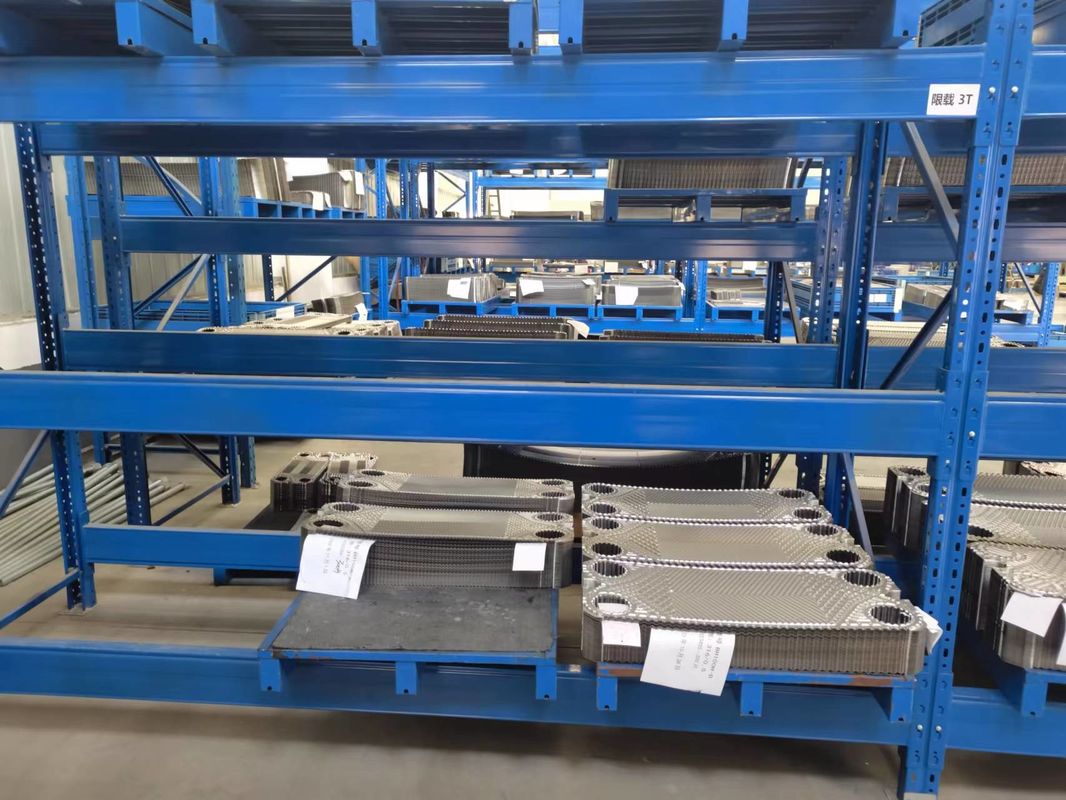

corrugated plates pressed from thin metal sheets and assembled with stainless steel frames and clamping bolts, known for its strong corrosion resistance
The working fluid flows through narrow and serpentine channels formed between two plates, while the hot and cold fluids undergo heat exchange across the plate channels
The multi-stage plate-type pasteurizer, constructed entirely of stainless steel, is extensively utilized in the food industry for high-temperature sterilization of heat-sensitive materials, including milk, soy milk, fruit juice, ice cream, yellow wine, beer, and various other liquid products
corrugated plates pressed from thin metal sheets and assembled with stainless steel frames and clamping bolts, known for its strong corrosion resistance
The working fluid flows through narrow and serpentine channels formed between two plates, while the hot and cold fluids undergo heat exchange across the plate channels
The multi-stage plate-type pasteurizer, constructed entirely of stainless steel, is extensively utilized in the food industry for high-temperature sterilization of heat-sensitive materials, including milk, soy milk, fruit juice, ice cream, yellow wine, beer, and various other liquid products
