HVAC Systems High Pressure Plate Heat Exchanger

Pressure Rating Ultra High Pressure Brazed Plate Heat Exchanger Used In Refrigeration And HVAC Systems

Introduction :

ULTRA HIGH PRESSURE BRAZED Plate Heat Exchanger adopt double splint design , make its compact structure and more pressure-bearing . It can use in heat pump system with R722(CO₂) refrigerating fluid .

A high-pressure plate heat exchanger is a type of heat exchanger specifically designed to operate under high-pressure conditions. It is capable of handling fluids at elevated pressures while efficiently transferring heat between them.

the high-pressure brazed plate heat exchanger is a reliable and efficient solution for demanding applications where high-pressure operation and compact design are critical factors. Its advanced design and performance make it a preferred choice in various industries for efficient heat transfer and improved process efficiency.

Applicable temperature : 200 ℃

Design Pressure : 14 Mpa

Test Pressure : 21 Mpa

Remark : splint material is Q235 , bolt for M16 , M20 , and available for suited lifting lug , footing , etc .

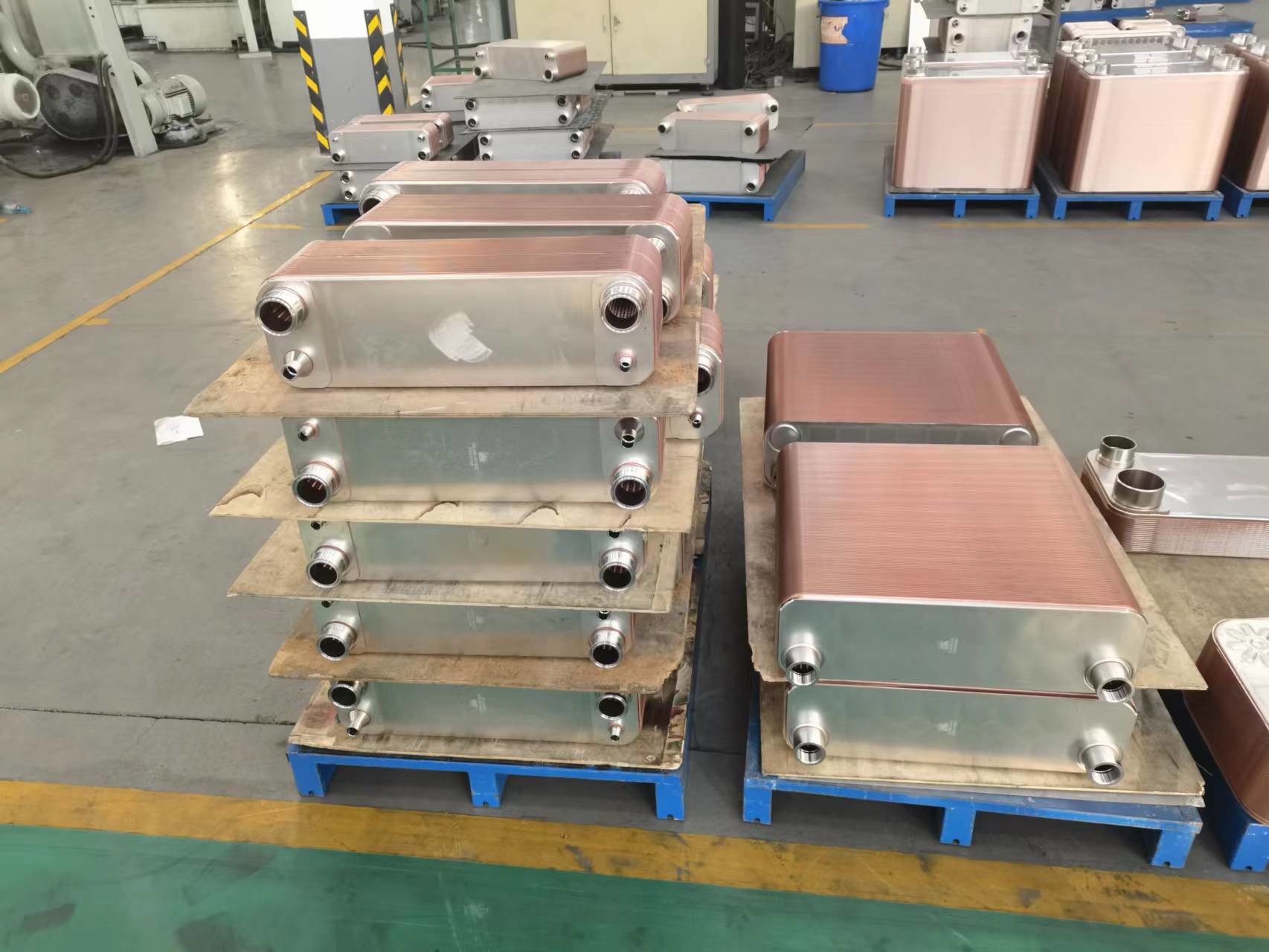

Workshop :
