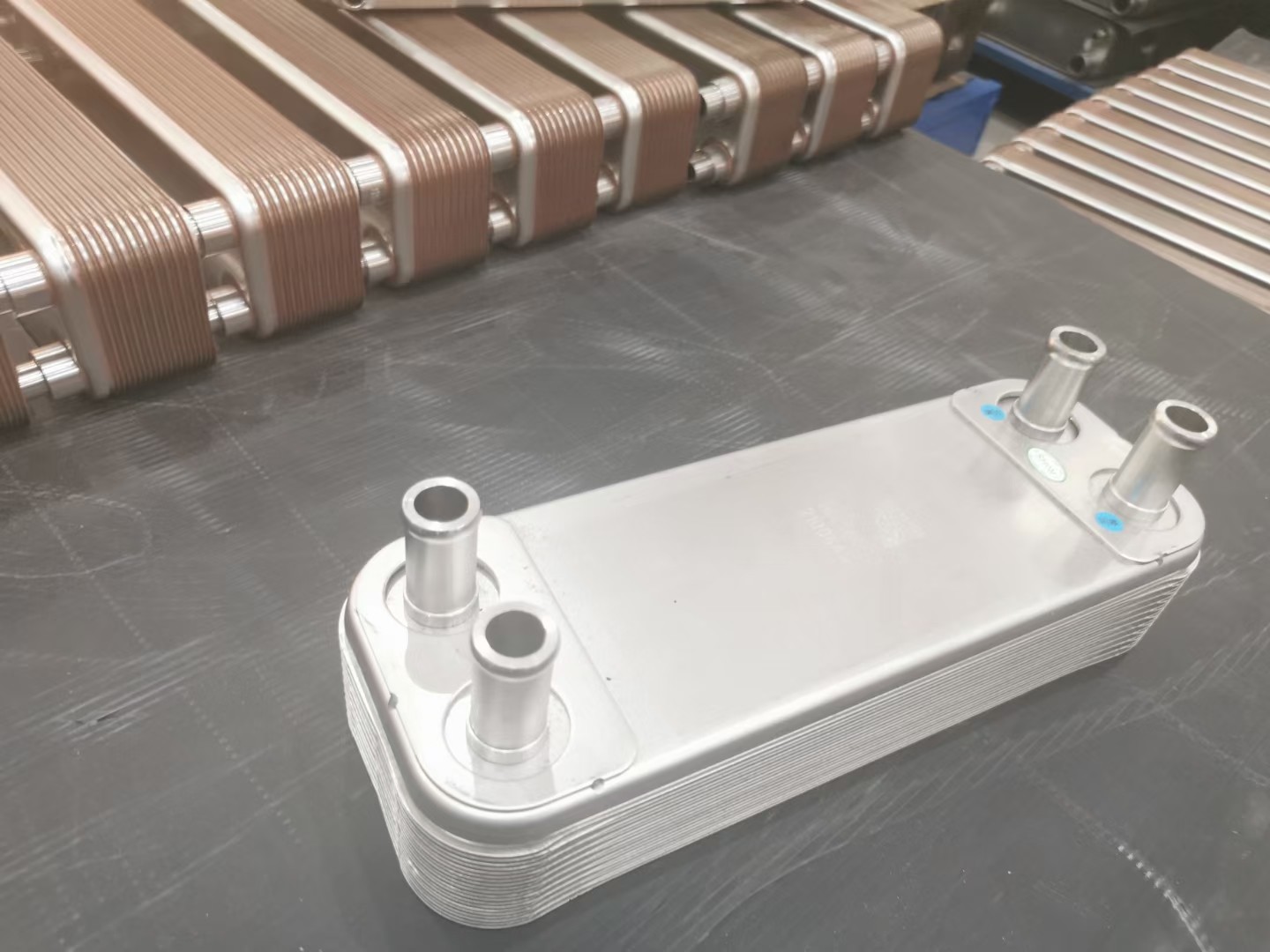

Customized Chevron Plate Design Copper / Stainless Steel Brazed Heat Exchanger For Heating And Colding

Customized Chevron Plate Design Copper/Stainless Steel Brazed Heat Exchanger Use For Heating and Colding

Product Description:

The Brazed Plate Heat Exchanger is an innovative and efficient solution designed for a wide range of heating and cooling applications. This high-quality product stands out for its exceptional performance and durability, offering a maximum pressure capacity of 4.5Mpa which ensures that it can withstand even the most demanding industrial environments. Crafted with the highest standards, the Brazed Plate Heat Exchanger is a testament to engineering excellence and is tailor-made to meet the unique requirements of each client, with specifications that can be customized according to individual needs.

At the heart of the Brazed Plate Heat Exchanger's superior efficiency is its Chevron plate design. This intricate pattern not only enhances the turbulence of fluids as they flow through the heat exchanger but also maximizes the heat transfer efficiency by promoting more effective thermal conductivity. The Chevron design is optimized to facilitate the transfer of heat between two mediums, which makes it ideal for a multitude of applications across various industries, from HVAC to food processing and power generation.

The versatility of the Brazed Plate Heat Exchanger is further emphasized by its impressive flow rate range of 8-300 M³/h. This wide range allows for flexible adaptation to both low and high-volume requirements, ensuring that regardless of the scale of your operation, the heat exchanger can deliver optimal performance. The ability to handle such a spectrum of flow rates makes this heat exchanger a universal solution that can be integrated seamlessly into numerous systems.

Regarding heat transfer efficiency, the Brazed Plate Heat Exchanger offers an extensive heat transfer area, ranging from 0.03-1.2 M²/pcs. This broad range means that it can be effectively utilized in systems that require either compact heat transfer solutions or more extensive surface area for larger-scale heat exchange processes. The customization options allow for precise tailoring to achieve the most efficient heat transfer rates, which is essential in reducing energy consumption and operational costs.

One of the unique features that set this Brazed Plate Heat Exchanger apart is the fusion bonded plate technology, also known as the Fusion Bonded Plate Heat Exchanger. This advanced technique ensures that the plates are permanently bonded without the use of gaskets, which significantly reduces the risk of leaks and maintenance requirements. The fusion bonding process guarantees a robust and long-lasting bond that can endure high temperatures and pressures, thereby enhancing the reliability and lifespan of the heat exchanger.

For applications that involve refrigeration or air conditioning systems, the Brazed Plate Heat Exchanger also functions exceptionally well as an Evaporator Plate Heat Exchanger. Its design and materials are optimized for efficient evaporation processes, and it can easily be incorporated as a critical component in such systems, providing precise temperature control and contributing to the overall energy efficiency of the operation.

In addition to the aforementioned features, the Brazed Plate Heat Exchanger also employs Copper Brazed Plate Heat Exchanger technology. Copper brazing not only offers superior thermal conductivity but also provides excellent corrosion resistance. The use of copper in the brazing process ensures that the heat exchanger is suitable for various fluids, including those that might be corrosive to other materials. This compatibility with a broad range of substances further extends the applicability of the Brazed Plate Heat Exchanger, making it a versatile choice for industries that handle diverse chemicals and fluids.

In conclusion, the Brazed Plate Heat Exchanger is a state-of-the-art solution that embodies efficiency, versatility, and durability. It is a product designed to cater to the most rigorous industrial demands, offering customized specifications, a robust Chevron plate design, high flow rates, extensive heat transfer areas, and cutting-edge technologies such as fusion bonding and copper brazing. Whether you require a reliable heat exchanger for your HVAC system, refrigeration units, or any other application that involves the transfer of heat, this product is equipped to provide outstanding performance and long-term reliability.

Features:

• Product Name: Brazed Plate Heat Exchanger
• Max Pressure: 4.5Mpa
• Design Temperature: -196 to 225°C
• Flow Rate: 8-300 m³/h
• Braze Material: Copper, Stainless Steel
• Plate Design: Chevron
• Also known as: Evaporator Plate Heat Exchanger
• Similar to: Full Welded Plate Heat Exchanger

Technical Parameters:

Applications:

The Tenkai Brazed Plate Heat Exchanger, originating from China, is an exceptional device certified by ISO9001, ensuring its quality and reliability in various applications. With a minimum order quantity of just one set and competitive pricing, Tenkai offers flexible solutions for businesses and industries worldwide. Each heat exchanger is securely packaged in a wooden crate, guaranteeing safe delivery within two weeks of order confirmation. To accommodate different financial preferences, Tenkai accepts various payment terms, including T/T, L/C, and D/P.

With a daily supply ability ranging from 120 to 160 pieces, Tenkai can meet the demands of both small-scale and large-scale operations. The brazed plate heat exchangers are constructed with robust materials such as copper and stainless steel, which are ideal for full welded plate heat exchanger applications. They are designed to cater to a wide range of flow rates, from 8 to 300 M³/h, and can withstand pressures up to 4.5Mpa, making them suitable for high-pressure scenarios.

The Tenkai Brazed Plate Heat Exchanger is not only versatile due to its customized specifications but also due to its wide range of applications. It is a perfect choice for scenarios that require a fusion bonded plate heat exchanger, where durability and efficiency are paramount. The design allows for maximum heat transfer, which is essential in industries like chemical processing, HVAC, and refrigeration, where temperature control and efficiency are critical.

Moreover, for larger systems where a frame and plate heat exchanger is necessary, Tenkai's product can be integrated seamlessly due to its customizable nature. Whether it's for heating and cooling in food and beverage production, managing thermal processes in power plants, or being part of the marine and offshore technology, Tenkai's heat exchangers are built to perform and last. Their full welded plate heat exchangers are particularly well-suited for environments where leakage prevention is crucial, such as in aggressive or contaminated fluid applications.

In conclusion, the Tenkai Brazed Plate Heat Exchanger represents a compelling choice for businesses looking for a reliable, efficient, and customizable heat transfer solution. Its adherence to ISO9001 certification, coupled with competitive pricing and robust construction, makes it a valuable asset for a multitude of occasions and scenarios across various industries.

Customization:

Brand Name: Tenkai

Place of Origin: China

Certification: ISO9001

Minimum Order Quantity: 1 set

Price: Competitive

Packaging Details: Wooden Package

Delivery Time: Within two weeks

Payment Terms: T/T, L/C, D/P

Supply Ability: 120-130pcs/day

Connections: Male Thread, Thread, SAE Flange, Soldering

Braze Material: Copper, Stainless Steel

Flow Rate: 8-300 M³/h

Design Temperature: -196 To 225 C

Plate Design: Chevron

Our Tenkai Brazed Plate Heat Exchanger is a highly efficient solution for both Evaporator Plate Heat Exchanger and Condenser Plate Heat Exchanger applications. Crafted with precision in China and meeting ISO9001 standards, this Brazed Plate Heat Exchanger is available at a competitive price and with a minimum order quantity of just one set. Each unit is carefully packaged in a wooden crate to ensure safe delivery within two weeks of your order. We offer flexible payment terms including T/T, L/C, and D/P, and boast a robust supply ability of 120-160 pieces per day. Featuring versatile connections such as Male Thread, Thread, SAE Flange, and Soldering, and available with Copper or Stainless Steel braze material, our heat exchangers can handle flow rates from 8 to 300 M³/h and are designed to withstand temperatures ranging from -196 to 225 degrees Celsius. The chevron plate design ensures optimal heat transfer for your system's needs.

Support and Services:

Our Brazed Plate Heat Exchanger is designed for efficiency and durability, with an emphasis on easy integration into various system configurations. To ensure optimal performance and longevity of your product, we offer comprehensive technical support and services. Our expert team is equipped to assist you with installation guidance, operational troubleshooting, and maintenance tips to maximize the efficiency of your heat exchanger.

For those requiring further assistance, we provide detailed documentation including manuals, technical specifications, and best practice recommendations. Our services also include access to our library of FAQs and troubleshooting guides that cover common issues and their resolutions.

In the event that your Brazed Plate Heat Exchanger requires service beyond routine maintenance or troubleshooting, we offer repair and parts replacement services. We use only genuine parts to ensure the integrity and performance of your heat exchanger.

We are committed to providing you with the support you need to keep your Brazed Plate Heat Exchanger operating at peak performance. Our team is dedicated to delivering timely and effective solutions to any technical challenges you may encounter.

Packing and Shipping:

The brazed plate heat exchanger is carefully packaged to ensure its integrity and safety during transportation. Each unit is enclosed in a robust, corrugated cardboard box with custom-fit foam or padding material to cushion the product from all sides. The packaging is designed to withstand the rigors of transit, protecting the delicate plates and brazed joints from any potential damage.

Before shipping, the packaged heat exchanger is sealed with heavy-duty packing tape and the box is clearly labeled with handling instructions and the contents of the package. We ensure that all our packages are compliant with international shipping standards for heavy industrial equipment.

Our shipping department dispatches the packaged heat exchanger through a trusted freight service provider to ensure timely and secure delivery. A tracking number is provided for the consignment, allowing the customer to monitor the shipment's progress until it arrives at the intended destination.
