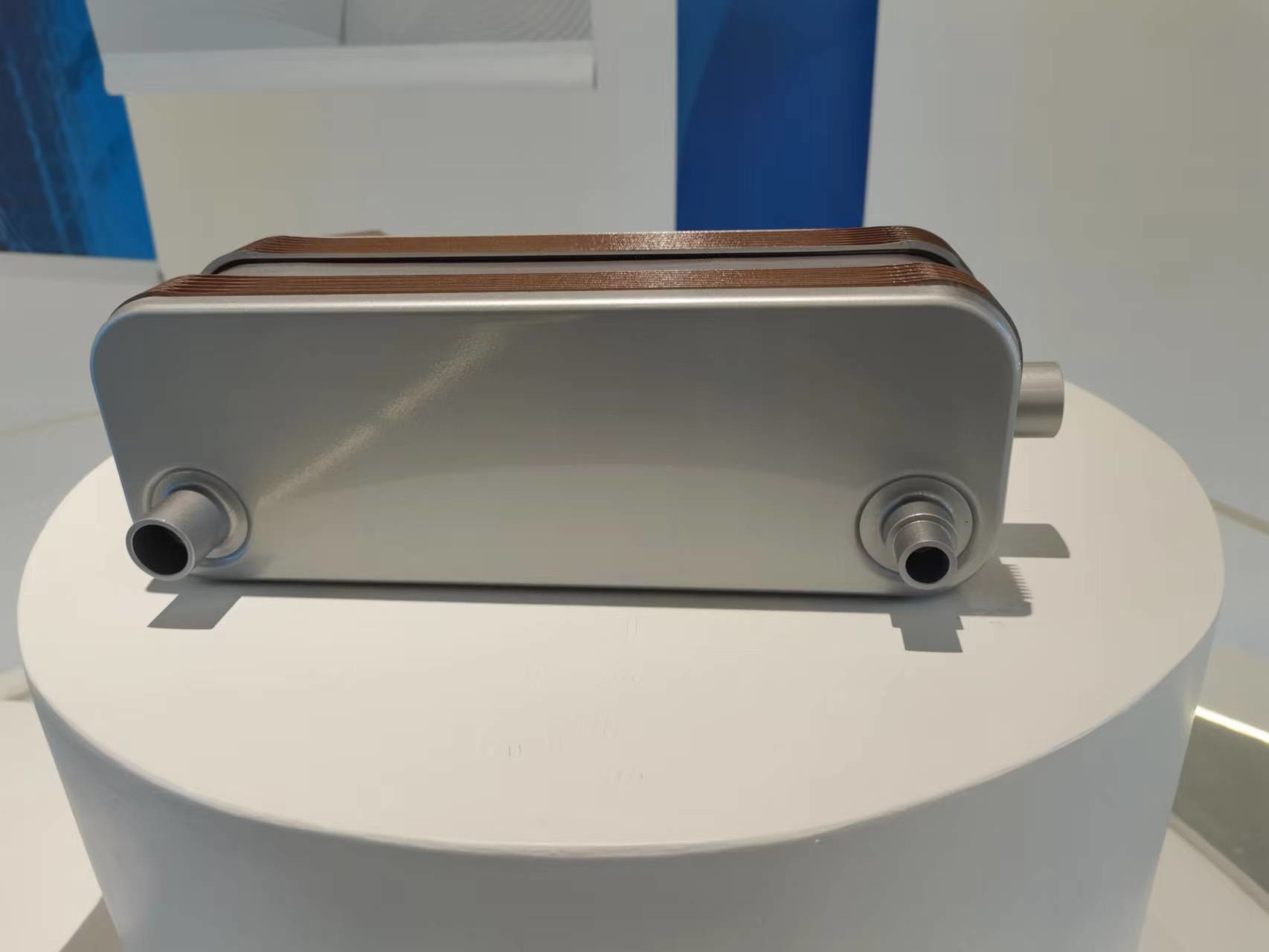

ISO Certified Brazed Plate Heat Exchanger With -196 To 225 C Design Temperature

Product Description:

The Brazed Plate Heat Exchanger is a highly efficient and compact heat transfer device designed for a wide range of industrial and commercial applications. It is a type of plate heat exchanger that consists of a series of thin, corrugated plates stacked together and brazed together using either copper or stainless steel as the brazing material.

With a heat transfer area ranging from 0.03 to 1.2 M², the Brazed Plate Heat Exchanger offers a high heat transfer rate and can handle a wide range of flow rates and temperatures. It is designed to be used in a variety of heating and cooling processes, making it a versatile solution for many industries.

One of the key features of the Brazed Plate Heat Exchanger is its compact design. The stacked plates allow for a large heat transfer area in a small physical size, making it ideal for installations where space is limited. This also results in a more efficient use of space and lower installation costs.

The Brazed Plate Heat Exchanger is also known for its durability and reliability. The use of brazing as the joining method ensures a strong and leak-proof construction, making it suitable for high-pressure applications. It has a maximum pressure rating of 4.5Mpa, making it a reliable choice for demanding industrial environments.

Our Brazed Plate Heat Exchanger is available in both copper and stainless steel brazing materials, allowing customers to choose the option that best suits their specific needs. Both materials offer excellent corrosion resistance and thermal conductivity, ensuring a long service life for the heat exchanger.

This product is certified with ISO, ensuring that it meets international quality and safety standards. It is also backed by a 1-year warranty, giving customers peace of mind and confidence in their purchase.

• Heat Transfer Area: 0.03-1.2 M²
• Braze Material: Copper, Stainless Steel
• Certifications: ISO
• Max Pressure: 4.5Mpa
• Warranty: 1 Year

• Frame and Plate Heat Exchanger
• Full Welded Plate Heat Exchanger
• Full Welded Plate Heat Exchanger

Features:

• Product Name: Brazed Plate Heat Exchanger
• Warranty: 1 Years
• Design Temperature: -196 To 225 C
• Braze Material: Copper,Stainless Steel
• Heat Transfer Area: 0.03-1.2 M²
• Max Pressure: 4.5Mpa
• Copper Brazed Plate Heat Exchanger
• Condenser Plate Heat Exchanger
• Frame And Plate Heat Exchanger
• Compact Design

Technical Parameters:

Key Words: Fusion Bonded Plate Heat Exchanger, Evaporator Plate Heat Exchanger, Copper Brazed Plate Heat Exchanger

Applications:

The Tenkai Brazed Plate Heat Exchanger is a highly efficient and compact heat transfer device designed for a variety of industrial applications. It is a type of plate heat exchanger that uses brazing technology to join multiple plates together, creating a series of channels for the transfer of heat between two fluids. This innovative design ensures maximum heat transfer with minimal energy consumption, making it a cost-effective solution for many industries.

Tenkai is a trusted brand in the heat exchanger industry, known for its high-quality products and advanced technology. With years of experience and a dedication to innovation, Tenkai has become a leading manufacturer of heat exchangers in China, providing reliable solutions for a wide range of industries worldwide.

Tenkai Brazed Plate Heat Exchangers are proudly made in China, manufactured with the highest quality materials and precision engineering. Our state-of-the-art production facility in China adheres to strict quality control measures to ensure every product meets international standards and exceeds customer expectations.

The Tenkai Brazed Plate Heat Exchanger offers a wide range of heat transfer areas to meet the specific needs of different applications. Ranging from 0.03 to 1.2 square meters, our heat exchangers are suitable for both small and large-scale operations.

The Tenkai Brazed Plate Heat Exchanger is designed to withstand extreme temperatures, making it suitable for a variety of environments and fluids. With a temperature range of -196 to 225 degrees Celsius, our heat exchangers are ideal for applications that require efficient heat transfer in both low and high-temperature settings.

Tenkai uses high-quality braze materials, such as copper and stainless steel, to ensure the durability and reliability of our Brazed Plate Heat Exchangers. These materials are known for their excellent thermal conductivity and corrosion resistance, ensuring efficient heat transfer and a longer lifespan for our products.

Tenkai Brazed Plate Heat Exchangers are manufactured in compliance with international standards and hold the ISO certification, ensuring our customers receive the highest quality and safest products.

The Tenkai Brazed Plate Heat Exchanger is capable of handling a wide range of flow rates, from 8 to 300 cubic meters per hour. This makes it suitable for various industries, including chemical, food and beverage, HVAC, and more.

The Tenkai Brazed Plate Heat Exchanger is ideal for a wide range of industrial applications, including:

• Condenser Plate Heat Exchanger: In refrigeration and air conditioning systems, the Tenkai Brazed Plate Heat Exchanger is used as a condenser to remove heat from the refrigerant, allowing it to change from a gas to a liquid state.
• Evaporator Plate Heat Exchanger: In industrial processes, the Tenkai Brazed Plate Heat Exchanger can act as an evaporator, transferring heat from a liquid to a gas, allowing for the separation of different components.
• Full Welded Plate Heat Exchanger: The Tenkai Brazed Plate Heat Exchanger can also be used as a full-welded heat exchanger, offering a more compact and efficient solution for applications that require high pressures and temperatures.

The Tenkai Brazed Plate Heat Exchanger is a versatile and efficient heat transfer solution for a variety of industrial applications. With its compact design, high-quality materials, and advanced technology, it offers significant energy savings and increased productivity for businesses worldwide.

Customization:

Brand Name: Tenkai

Place of Origin: China

Connections: Male Thread, Thread, SAE Flange, Soldering

Certifications: ISO

Warranty: 1 Year

Design Temperature: -196 to 225°C

Max Pressure: 4.5Mpa

At Tenkai, we offer customizable solutions for our Copper Brazed Plate Heat Exchanger, Brazed Plate Heat Exchanger, and Full Welded Plate Heat Exchanger products. Our expert team will work closely with you to design and manufacture a heat exchanger that meets your specific requirements.

With our state-of-the-art technology and high-quality materials, we can provide a wide range of connection options, including male thread, thread, SAE flange, and soldering. Our products are ISO certified, ensuring their durability and reliability.

We stand behind the quality of our products and offer a 1-year warranty for all our customized heat exchangers. Our products are designed to withstand extreme temperatures ranging from -196 to 225°C and can handle a maximum pressure of 4.5Mpa.

Choose Tenkai for your Brazed Plate Heat Exchanger customization needs and experience superior performance and efficiency. Contact us now to discuss your specific requirements and get a quote for your customized heat exchanger.

Packing and Shipping:

The Brazed Plate Heat Exchanger is carefully packaged to ensure safe and secure delivery to our customers. Each unit is packed in a sturdy wooden crate or box to protect it from any damage during transportation.

Our packaging process includes multiple layers of protection, including foam padding, bubble wrap, and heavy-duty cardboard. This ensures that the heat exchanger is well-protected and can withstand any bumps or impacts during shipping.

The package also includes all necessary installation materials, such as gaskets and mounting brackets, to make it easier for our customers to install the heat exchanger upon arrival.

For international shipments, we use durable and reliable shipping methods to ensure the product's safe arrival without any delays. We also provide all necessary documentation, including commercial invoices and packing lists, to facilitate the customs clearance process.

At Brazed Plate Heat Exchanger, we understand the importance of timely and safe delivery, and we take all necessary measures to ensure that our customers receive their products in perfect condition.

FAQ:

• Q: What is Brazed Plate Heat Exchanger?
• A: Brazed Plate Heat Exchanger is a compact and efficient heat exchanger that uses brazed plates to transfer heat between two fluids.
• Q: What is the brand name of this product?
• A: The brand name of this product is Tenkai.
• Q: Where is this product manufactured?
• A: This product is manufactured in China.
• Q: What is the model number of this product?
• A: The model number of this product is BPH-01.
• Q: What are the advantages of using Brazed Plate Heat Exchangers?
• A: The advantages of using Brazed Plate Heat Exchangers include high heat transfer efficiency, compact size, and low cost compared to other types of heat exchangers.
