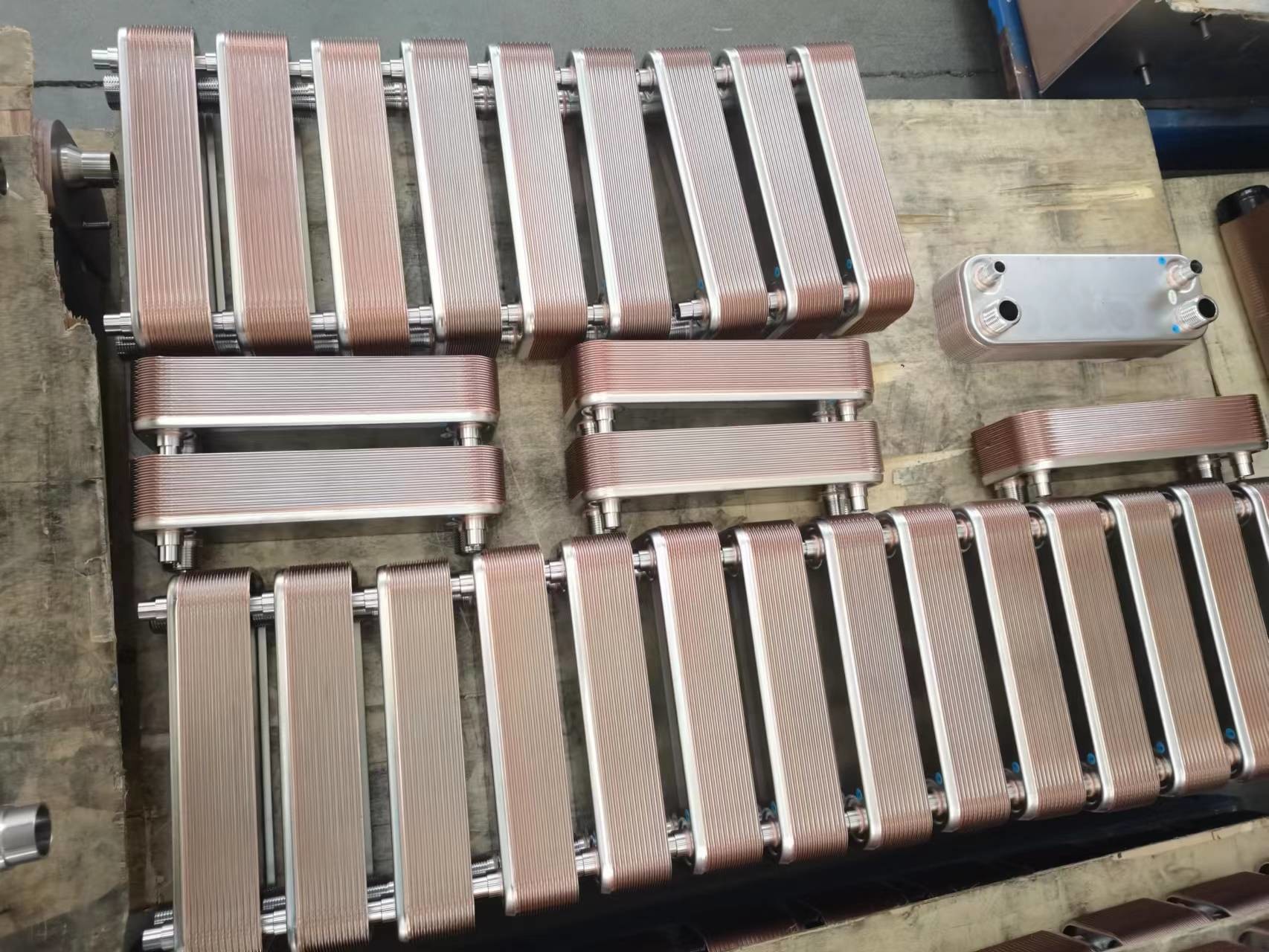

Compact And Customized Copper Brazed Plate Heat Exchanger With Max Pressure 4.5Mpa

Product Description:

The Brazed Plate Heat Exchanger is a highly efficient and compact heat transfer system used for a variety of industrial and commercial applications. It consists of multiple plates that are brazed together to create a series of channels for the exchange of heat between two fluids. The unique design of the Brazed Plate Heat Exchanger allows for high heat transfer rates and minimal pressure drop, making it an ideal choice for many heating and cooling applications.

The plates of the Brazed Plate Heat Exchanger are designed in a chevron pattern, which maximizes the heat transfer surface area and creates a turbulent flow for efficient heat transfer. This design also allows for a compact size, making it ideal for installations where space is limited.

The Brazed Plate Heat Exchanger comes with a 1-year warranty, ensuring the quality and reliability of the product. This warranty covers any defects in materials or workmanship, providing customers with peace of mind and confidence in their purchase.

The plates of the Brazed Plate Heat Exchanger are joined together using a combination of copper and stainless steel braze material. This creates a strong and durable bond between the plates, ensuring long-term performance and resistance to corrosion.

Each Brazed Plate Heat Exchanger is customized to meet the specific requirements of the customer's application. This allows for a more efficient and tailored solution, ensuring optimal performance and cost-effectiveness.

The Brazed Plate Heat Exchanger can handle flow rates ranging from 8 to 300 cubic meters per hour, making it suitable for a wide range of applications. This high flow rate capability, combined with its compact size, makes it a popular choice for both industrial and commercial use.

The Brazed Plate Heat Exchanger can be used as an evaporator in a variety of refrigeration systems, including air conditioners, refrigerators, and freezers. Its high heat transfer efficiency and compact size make it a popular choice for these applications.

The Brazed Plate Heat Exchanger can also function as a condenser in refrigeration and air conditioning systems. It effectively transfers heat from the refrigerant to the surrounding air, allowing for efficient cooling and temperature control.

In conclusion, the Brazed Plate Heat Exchanger is a versatile and reliable product that offers high efficiency, compact size, and customizable specifications. Its use as both an evaporator and condenser in various applications makes it a valuable asset in many industries. With its 1-year warranty and durable braze material, it is a cost-effective and long-lasting solution for all your heat transfer needs.

Features:

• Product Name: Brazed Plate Heat Exchanger
• Flow Rate: 8-300 M³/h
• Design Temperature: -196 To 225 C
• Heat Transfer Area: 0.03-1.2 M²
• Max Pressure: 4.5Mpa
• Braze Material: Copper,Stainless Steel
• Copper Brazed Plate Heat Exchanger
• Full Welded Plate Heat Exchanger
• Condenser Plate Heat Exchanger
• High Efficiency
• Compact Size

Technical Parameters:

Applications:

Tenkai is a well-known brand in the field of heat exchangers, providing high-quality and reliable products to customers all over the world.

Tenkai's brazed plate heat exchangers are manufactured in China, ensuring the highest level of quality control and cost-efficiency.

The chevron plate design of Tenkai's brazed plate heat exchanger allows for efficient heat transfer and compact size, making it suitable for various applications.

With a wide temperature range, Tenkai's brazed plate heat exchanger can handle extreme conditions and provide stable performance.

Tenkai's brazed plate heat exchanger offers multiple connection options, including male thread, thread, SAE flange, and soldering, to meet different installation requirements.

The heat transfer area of Tenkai's brazed plate heat exchanger ranges from 0.03 to 1.2 square meters, providing high efficiency in heat transfer.

With a flow rate ranging from 8 to 300 cubic meters per hour, Tenkai's brazed plate heat exchanger is suitable for a wide range of flow rates and can handle various industrial applications.

Tenkai's brazed plate heat exchanger is widely used in various industries, including:

• Oil and gas industry
• Chemical industry
• Food and beverage industry
• Pharmaceutical industry
• HVAC systems
• Power generation

Some common usage scenarios for Tenkai's brazed plate heat exchanger are:

• Heat recovery: Tenkai's brazed plate heat exchanger can recover heat from hot exhaust gases and transfer it to other processes, reducing energy consumption and costs.
• Liquid-to-liquid heating and cooling: Tenkai's brazed plate heat exchanger can efficiently transfer heat between two liquids of different temperatures, making it ideal for heating or cooling processes.
• Condensation and evaporation: Tenkai's brazed plate heat exchanger can be used for condensing or evaporating liquids, making it suitable for applications such as distillation and refrigeration.
• Steam heating: Tenkai's brazed plate heat exchanger can be used in steam heating systems, providing precise and efficient heat transfer.
• Waste heat recovery: Tenkai's brazed plate heat exchanger can recover waste heat from various processes and reuse it, reducing energy waste and costs.

Overall, Tenkai's brazed plate heat exchanger is a versatile and reliable product, suitable for various applications and capable of handling extreme conditions with high efficiency and performance.

Customization:

Brand Name: Tenkai

Place of Origin: China

Heat Transfer Area: 0.03-1.2 M²

Design Temperature: -196 To 225 C

Max Pressure: 4.5Mpa

Braze Material: Copper,Stainless Steel

Warranty: 1 Years

• Full Welded Plate Heat Exchanger
• Frame And Plate Heat Exchanger
• Condenser Plate Heat Exchanger
• Customized Solutions

Packing and Shipping:

The Brazed Plate Heat Exchanger is carefully packaged and shipped to ensure its safe delivery to our customers.

Each unit is first wrapped in a protective plastic film to prevent any scratches or damage during handling and transit. The unit is then placed in a sturdy and durable cardboard box with sufficient padding to prevent any movement during transport.

We also offer customized packaging options for bulk orders, such as wooden crates or pallets, to ensure the safe delivery of multiple units.

The Brazed Plate Heat Exchanger is shipped using reliable and trusted shipping carriers to ensure timely and secure delivery. We offer various shipping options to meet our customers' specific needs and requirements.

For international shipments, all necessary documentation, including commercial invoices and customs forms, will be provided to expedite the customs clearance process.

Our team takes great care in packaging and shipping each unit to guarantee its safe arrival at your doorstep.

FAQ:

• Q: What is the brand name of this product?
• A: The brand name of this product is Tenkai.
• Q: Where is this product manufactured?
• A: This product is manufactured in China.
• Q: What type of heat exchanger is this product?
• A: This product is a Brazed Plate Heat Exchanger.
• Q: What is the maximum working pressure of this product?
• A: The maximum working pressure of this product is 30 bar.
