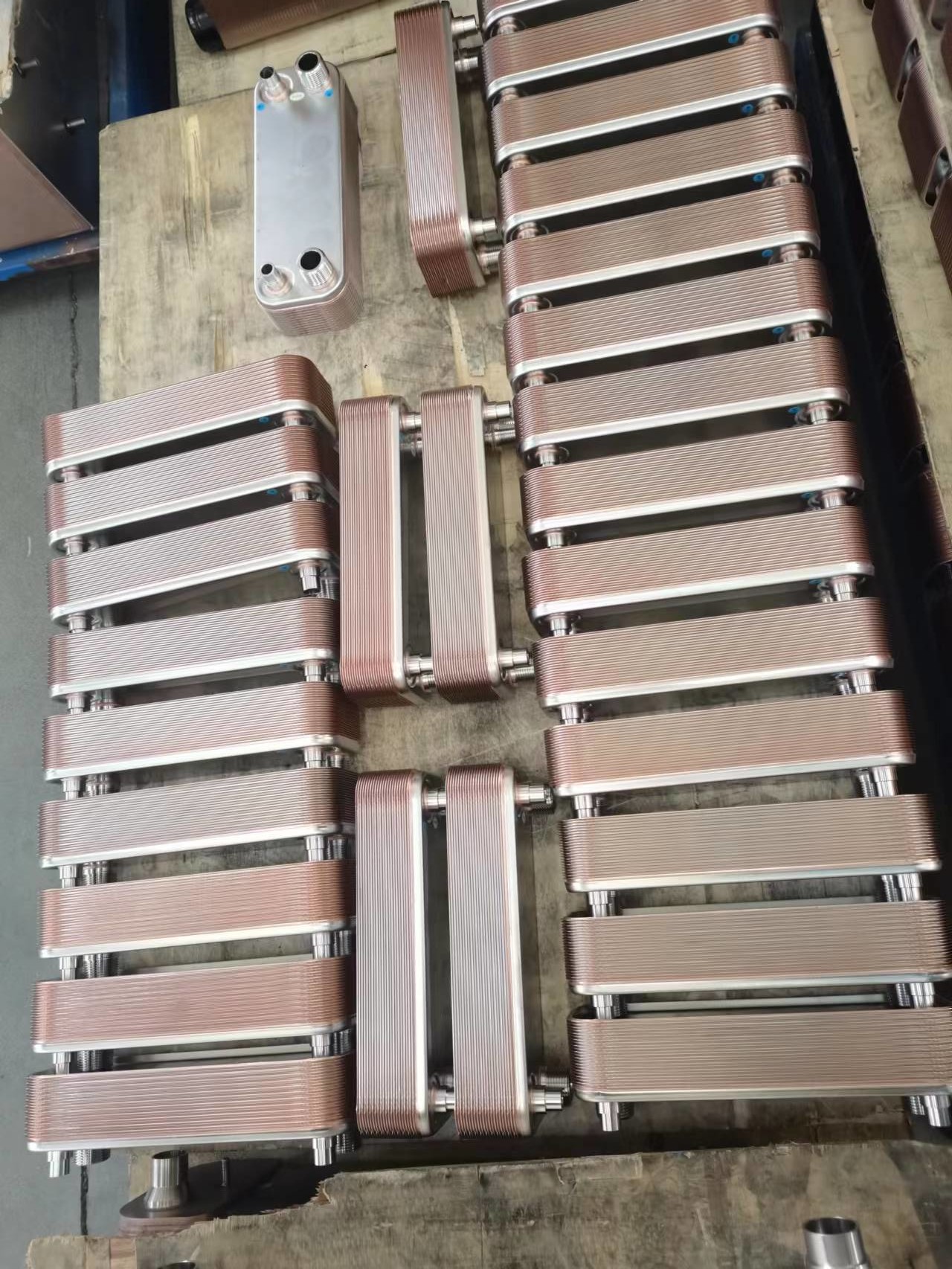

Customized Design Brazed Plate Heat Exchanger For High Pressure And Durability

Product Description:

The Brazed Plate Heat Exchanger is a highly efficient and compact heat transfer solution, suitable for a wide range of applications. This product is designed with a unique Chevron plate design and utilizes copper and stainless steel as its braze material, ensuring excellent thermal performance and durability.

The Brazed Plate Heat Exchanger is a type of compact heat exchanger that is widely used in various industries such as HVAC, refrigeration, chemical, and food processing. It is a type of Condenser Plate Heat Exchanger that offers high thermal efficiency and is easy to install and maintain. The product is built with a Frame and Plate Heat Exchanger design, making it compact, lightweight, and highly effective in heat transfer.

• Warranty: The Brazed Plate Heat Exchanger comes with a 1-year warranty, ensuring the product's quality and reliability.
• Max Pressure: With a maximum pressure of 4.5Mpa, this heat exchanger can withstand high-pressure applications, making it suitable for a wide range of industrial processes.
• Flow Rate: The product has a flow rate of 8-300 M³/h, allowing for high heat transfer efficiency even in high flow rate systems.
• Plate Design: The Chevron plate design of the Brazed Plate Heat Exchanger allows for maximum heat transfer between the two fluids, resulting in a more compact and efficient design.
• Braze Material: The use of copper and stainless steel as the braze material ensures excellent thermal performance, corrosion resistance, and durability of the heat exchanger, making it suitable for a wide range of applications.

• Compact and lightweight design, saving space and reducing installation costs.
• High thermal efficiency, resulting in lower energy consumption and cost savings.
• Easy to install and maintain, reducing downtime and maintenance costs.
• Can handle high-pressure and high-flow rate applications, making it versatile for various industrial processes.
• Offers excellent corrosion resistance and durability, ensuring a longer lifespan.

The Brazed Plate Heat Exchanger is a reliable and cost-effective solution for heat transfer needs. Its compact design, high thermal efficiency, and versatile applications make it a popular choice for many industries. With a 1-year warranty and excellent performance, this heat exchanger is an ideal choice for your heat transfer requirements.

Features:

• Product Name: Brazed Plate Heat Exchanger
• Flow Rate: 8-300 M³/h
• Certifications: ISO
• Plate Design: Chevron
• Heat Transfer Area: 0.03-1.2 M²
• Specification: Customized
• Full Welded Plate Heat Exchanger
• High Efficiency Heat Transfer
• Compact Design
• Durable Construction
• Wide Range of Applications
• Easy Installation and Maintenance
• Energy Saving
• Corrosion Resistance
• Excellent Thermal Performance
• Customizable Design for Specific Requirements
• Cost-effective Solution
• Reliable and Long-lasting Performance
• Efficient Heat Exchanger for Various Media

Technical Parameters:

Applications:

Tenkai Brazed Plate Heat Exchanger, as a high-quality product from China, has been widely recognized and trusted by customers all over the world. It is manufactured with strict quality control and advanced technology, ensuring its excellent performance and durability.

Tenkai Brazed Plate Heat Exchanger is designed to work effectively in extreme temperatures ranging from -196 to 225 C. This makes it suitable for various industries and applications, providing reliable heat transfer solutions in both low and high-temperature environments.

With a maximum pressure of 4.5Mpa, Tenkai Brazed Plate Heat Exchanger can withstand high pressure and ensure stable operation, making it ideal for use in demanding industrial and commercial applications.

Tenkai Brazed Plate Heat Exchanger offers a variety of connection options including male thread, thread, SAE flange, and soldering, providing flexibility and convenience in installation and connection.

The flow rate of Tenkai Brazed Plate Heat Exchanger ranges from 8 to 300 M³/h, ensuring efficient heat transfer in a wide range of applications. It can handle different flow rates without compromising its performance, making it a versatile and reliable choice.

Tenkai Brazed Plate Heat Exchanger comes with a 1-year warranty, providing customers with peace of mind and assurance of its quality and performance. In addition, we offer excellent after-sales service to ensure customer satisfaction.

Tenkai Brazed Plate Heat Exchanger can be used as an efficient evaporator in various cooling systems, such as refrigeration, air conditioning, and heat pumps. Its compact design and high heat transfer efficiency make it an ideal choice for evaporator applications, providing significant energy savings for users.

Tenkai Brazed Plate Heat Exchanger is a full welded plate heat exchanger, ensuring leak-free operation and high thermal efficiency. Its all-welded construction also makes it suitable for use in corrosive environments, providing reliable heat transfer solutions for various industries.

Tenkai Brazed Plate Heat Exchanger is made of high-quality stainless steel and copper, ensuring its durability and corrosion resistance. The copper brazed plates also provide excellent heat transfer performance and make it suitable for a wide range of applications.

Tenkai Brazed Plate Heat Exchanger features a compact design, allowing it to be installed in tight spaces and saving valuable floor space. Its high heat transfer efficiency and energy-saving operation make it a cost-effective choice for heat transfer solutions.

Tenkai Brazed Plate Heat Exchanger can be used in various industries and applications, such as HVAC, refrigeration, industrial processes, and renewable energy systems. Its versatility and high performance make it suitable for a wide range of applications, providing efficient heat transfer solutions for different needs.

Tenkai Brazed Plate Heat Exchanger is designed for easy installation and maintenance, saving time and effort for users. Its durable construction and reliable performance make it a long-lasting and dependable choice for heat transfer solutions.

Customization:

Product Name: Brazed Plate Heat Exchanger

Place of Origin: China

Warranty: 1 Year

Flow Rate: 8-300 M³/h

Connections: Male Thread, Thread, SAE Flange, Soldering

Max Pressure: 4.5Mpa

Design Temperature: -196 To 225 C

Key Features:

• Full Welded Plate Heat Exchanger
• Brazed Plate Heat Exchanger
• Brazed Plate Heat Exchanger Customization
• Tenkai Brazed Plate Heat Exchanger
• High Quality
• Efficient
• Durable

Packing and Shipping:

Our Brazed Plate Heat Exchanger is carefully packaged to ensure safe transportation and delivery to our customers. The packaging process includes the following steps:

1. All individual plates of the heat exchanger are wrapped with protective material to prevent any scratches or damage during transportation.
2. The plates are then stacked and securely fastened together using strapping or shrink wrap.
3. The heat exchanger is placed in a sturdy cardboard box with added padding for extra protection.
4. The box is sealed and labeled with the product name, dimensions, and weight for easy identification.

In addition to our standard packaging process, we also offer custom packaging options to meet specific customer requirements. This includes specialized boxes, crates, and pallets.

For shipping, we work with reliable and trusted carriers to ensure timely and safe delivery of our products. We offer various shipping options including ground, air, and ocean freight. Our team carefully monitors the transportation process to ensure that the heat exchanger arrives at its final destination in perfect condition.

We take great care in packaging and shipping our Brazed Plate Heat Exchanger to guarantee the satisfaction of our customers. For more information, please contact our sales team.

FAQ:

• Q: What is the brand name of this product?
  A: The brand name of this product is Tenkai.
• Q: Where is this product made?
  A: This product is made in China.
• Q: What is the heat transfer material used in this product?
  A: The heat transfer material used in this product is stainless steel.
• Q: What is the maximum pressure that this product can withstand?
  A: This product can withstand a maximum pressure of 30 bar.
• Q: What are the applications of this product?
  A: This product is commonly used in HVAC systems, refrigeration, and industrial processes for efficient heat transfer.
