Detail Information

Material:	Copper	Max Design Pressure:	4.5 Mpa
Connection Mode:	Male Thread , Female Thread, Flange, SAE Flange, Soldering	Warranty Period:	One Year
Structure:	Plate Heat Exchanger	HS CODE:	8419500090
Application:	HVAC Industry/Chemical Industry
Highlight:	BHE Copper Brazed Plate Condenser , Refrigeration Units Brazed Heat Exchanger , Refrigeration Units bhe heat exchanger

Product Description

BHE Copper Brazed Plate Heat Exchanger In Refrigeration Units

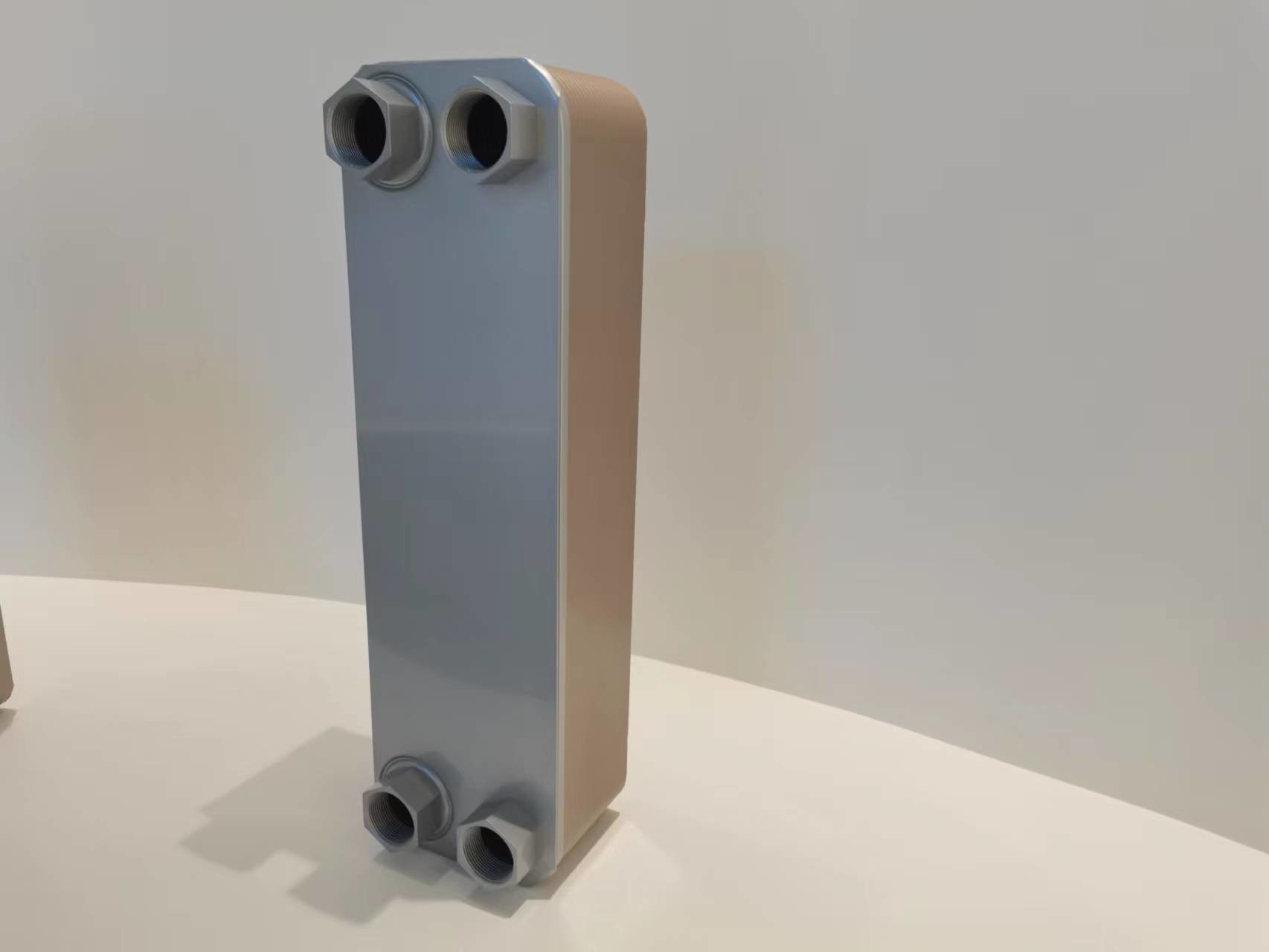

BHE Copper Brazed Plate Condenser In Refrigeration Units One Year Warranty 0

History :

Early Heat Exchangers: The concept of heat exchange has been around for centuries, but the modern understanding and application of heat exchangers began to emerge in the 19th century. Initially, heat exchangers were constructed using brass or iron materials.

Introduction of Copper: Copper started gaining prominence in heat exchangers due to its superior thermal conductivity compared to other materials. The high thermal conductivity of copper allowed for efficient heat transfer, leading to better heat exchange performance and energy efficiency.

Development of Plate Heat Exchangers: The development of plate heat exchangers revolutionized the industry. The first plate heat exchanger design was patented by Dr. Richard Seligman in 1923. These early plate heat exchangers utilized copper plates with gaskets to form the heat transfer channels.

TYPE	B(mm	C(mm	D(mm)	E(mm)	Thickness (mm)	Weight(Kg)	Max Flow (m3/h)	Design Pressure (Mpa)
SB14	77	42	206	172	9+2.3N	0.7+0.06N	8	1/3/4.5
SB16	78	42	208	172	9+2.24N	0.6+0.049N	8	1/3/4.5
SB18	95	50	210	165	7+3.1N	0.7+0.06N	8	1
SB20B	78	42	318	282	9+2.3N	1+0.08N	8	3/4.5
SB20C	77	42	313	278	10+1.28N	0.9+0.07N	8	3/4.5
SB26	111	50	310	250	10+2.32N	1.3+0.12N	18	3/4.5
SB26F	107	50	307	250	10+1.98N	1.3+0.1N	18	3/4.5
SB28B	120	72	290	243	10+2.36N	1.5+0.133N	18	3/4.5
SB28C	120	63	290	234	10+2.36N	1.5+0.133N	18	3/4.5
SB30	126	70	307	250	10+2.35N	2.2+0.16N	18	3/4.5
SB52A	111	50	526	466	9+2.32N	2.6+0.21N	18	3/4.5
SB52B	111	50	526	466	9+2.32N	2.6+0.19N	18	3/4.5
SB53	106	50	522	466	9+2.1N	2.6+0.27N	18	3/4.5
SB62A	120	63	528	470	10+2.35N	2.379+0.194N	18	3/4.5
SB62B	120	63	528	470	10+2.35N	2.379+0.194N	18	3/4.5
SB65	125	65	540	480	11+2.28N	2.5+0.228N	18	3/4.5
SB95A	189	92	616	519	11+2.7N	7.8+0.44N	42	3/4.5
SB95B	189	92	616	519	11+2.7N	7.8+0.44N	42	3/4.5
SB120A	246	174	528	456	10+2.34N	7.2+0.52N	42	3/4.5
SB120B	246	174	528	456	10+2.34N	7.2+0.52N	42	3/4.5
SB190	303	179	695	567	13+2.3N	12+0.61N	100	1.6/2.1/3
SB200A	320	188	742	603	14+2.7N	13+0.67N	100	1.5/2.1/3
SB200B	320	188	742	603	14+2.7N	13+0.67N	100	1.5/2.1/3
SB200E	320	207	742	624	14+2.7N	13+0.67N	100	1.5/2.1/3
SB202	319	188	741	603	16+2.85N	13+0.957N	100	2.1/3
SB300	370	118(95.5)	995	861(816)	17+2.675N	20+1.26N	200	1.6/2.1/3
SB500	304	179	982	854	17+2.29N	26.6+0.93N	200	2.1/3
SB01	390	204	1320	1132	22+2.75N	30+1.8N	300	3/4.5

Parts :

BHE Copper Brazed Plate Condenser In Refrigeration Units One Year Warranty 1

Workshop :

BHE Copper Brazed Plate Condenser In Refrigeration Units One Year Warranty 2

Package:

BHE Copper Brazed Plate Condenser In Refrigeration Units One Year Warranty 3

Tag:

Place of Origin:	CHINA
Brand Name:	Tenkai
Certification:	ISO9001
Model Number:	SB28B

Minimum Order Quantity:	2 Package
Price:	Negotiate
Packaging Details:	Wooden Box Package
Delivery Time:	Within 10 days
Payment Terms:	L/C, T/T, D/P
Supply Ability:	460pcs/Day
