Introduction :

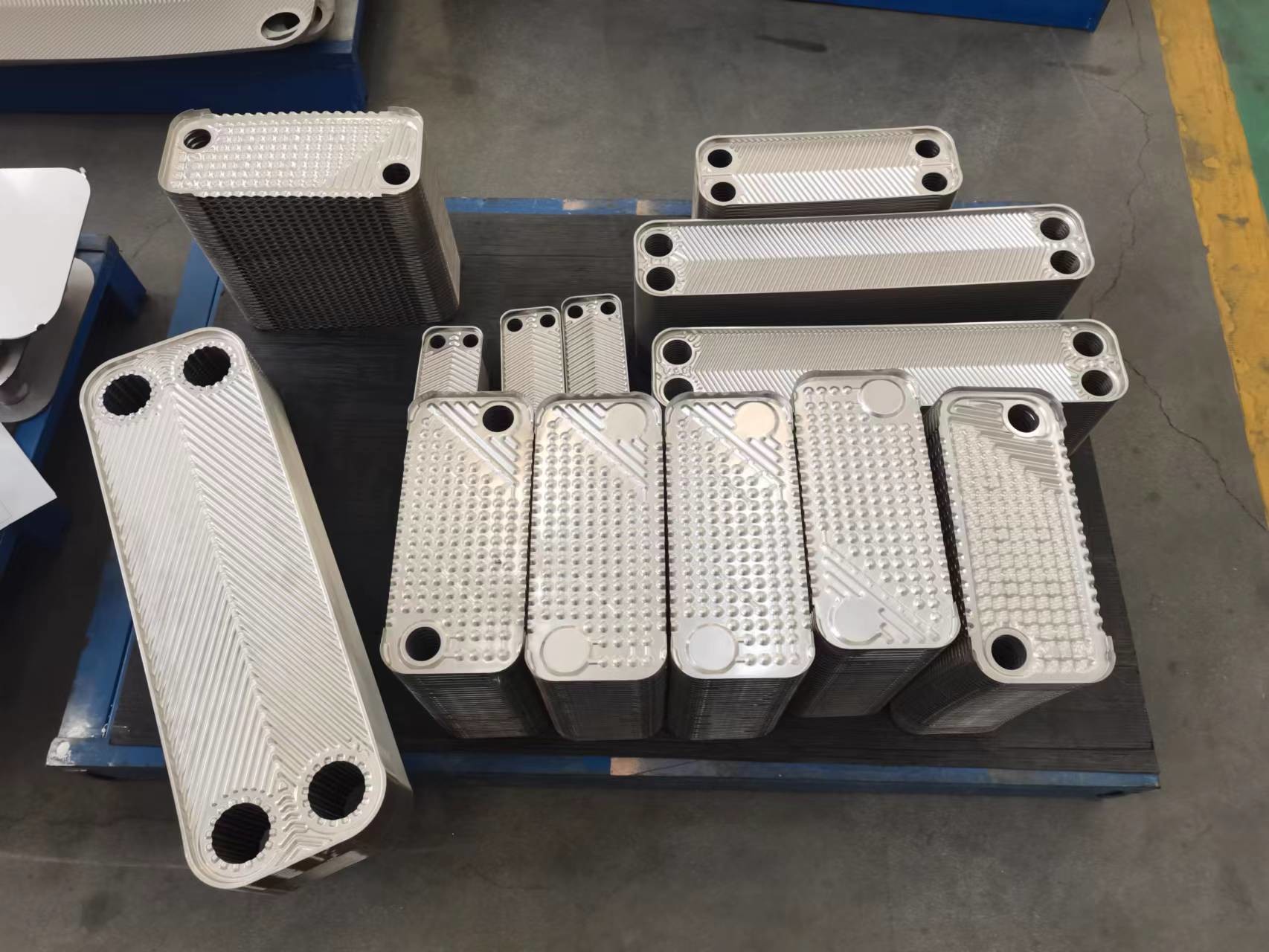

A brazed plate heat exchanger is a type of heat transfer device that utilizes brazing technology to join metal plates together. These plates are typically made of Copper ,stainless steel and are arranged in a corrugated pattern.

Brazed plate heat exchangers consist of multiple plates stacked together and permanently bonded using a brazing process. The brazing material, typically copper or nickel, is melted and flows into the corrugated channels, creating a strong and leak-proof joint. This brazing technique ensures excellent thermal conductivity and structural integrity.

The corrugated design of the plates enhances heat transfer by creating turbulence in the fluid flow. This increases the contact surface area between the fluids, resulting in efficient heat exchange. The compact size and lightweight construction of brazed plate heat exchangers allow for space-saving installations.

Diagonal Flow Brazing Heat Exchanger is special for central air-conditioning , industrial chiller, large-scale heat pump system , etc ...refrigerating fluid use in duplex compressor , its max heat transfer power can reach 600KW , especially optimization design refrigerating fluid type R410A in the structure .

3IN1 BRAZED PLATE HEAT EXCHANGER , we can call it air drier plate heat exchanger , short name with refrigeration dryer .

inlcude evaporator , gas-water separator and precooler .

Precooler :

Heat exchanger for cold air and high temperature air , save energy dissipation for compressor . non-condensation in outlet and directly put in use.

Evaporator:

The water congealed which from compressed air . High Efficiency , Low Dew , Low Pressure Drop .

Gas-water Separator :

Seperate gas and water , dried air . No blocking , easy maintain .

Three-In-One , High heat transfer efficicency , volume small , save space , fully remove water , Eliminate clogging problems .
