AIR CROSS BRAZED PLATE HEAT EXCHANGER TYPE AC36 HS CODE 8419500090

Basic Information

Place of Origin:	CHINA
Brand Name:	Tenkai
Certification:	ISO
Model Number:	AC36

Minimum Order Quantity:	1pcs
Price:	Negotiate
Packaging Details:	Wooden Box Package
Delivery Time:	Within one week
Payment Terms:	L/C, T/T, D/P
Supply Ability:	400pcs/Day

Get Best Price Contact Now

Detail Information

Material:	Copper	Copper Design Temperature:	-196 ℃-225 ℃
Copper MAX Design Pressure:	4.5 Mpa	Connection Mode:	Male Thread , Female Thvead, Flange, SAE Flange, Soldering
Warranty Period:	One Year	Structure:	Plate Heat Exchanger
HS CODE:	8419500090

Product Description

AIR CROSS BRAZED PLATE HEAT EXCHANGER TYPE AC36 HS CODE 8419500090

Introduction :

Air Cross Brazed Heat Exchanger was made from stainless steel sheet of decussation flow path through vacuum brazing , Its asymmetric design which apply in specified flue gas constant flow on one side and high density medium flow on another side . system design can assemble with single component , also can assemble one system with more air cross heat exchanger .

TYPE	B(mm)	C(mm)	D(mm)	E(mm)	THICKNESS(mm)	WEIGHT(Kg)	DESIGN PRESSURE(Mpa)
AC35	124	52	286	227	6+3.23N	1.64+0.124N	3
AC36	124	52	286	227	6+3.23N	1.64+0.124N	3
AC116	213		621	476	12+2.26N	12+0.44N	1.5
AC150	202		771	610	12+2.24N	15+0.5N	1.5
AC340	490	328	780	578	12+2.08N	36+1.17N	1.5

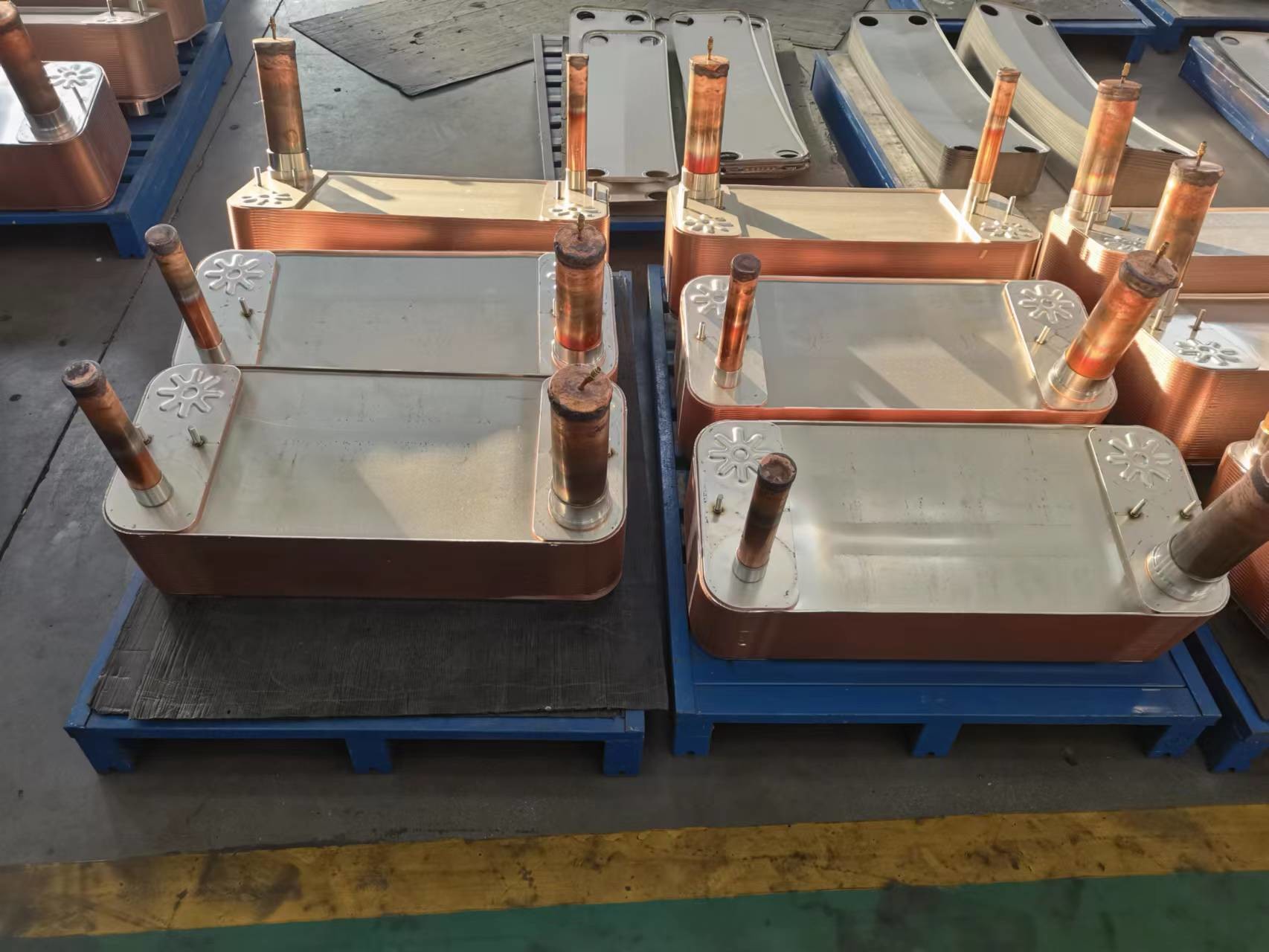

Workshop :

AIR CROSS BRAZED PLATE HEAT EXCHANGER TYPE AC36 HS CODE 8419500090 0

AIR CROSS BRAZED PLATE HEAT EXCHANGER TYPE AC36 HS CODE 8419500090 1
