Transfer Device Stainless Steel Box Type Fusion Bonded Plate Heat Exchanger For Pharmaceutical and Health Industry
| TYPE |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
THICKNESS(mm) |
WEIGHT(Kg) |
MAX FLOW m3/h) |
DESIGN PRESSURE (Mpa) |
| BT350BR |
318 |
160 |
1060 |
912 |
44+2.23N |
79.3+1.31N(N<132)
82.23+1.404N(N≥132)
|
50 |
0.5 |
|
|
|
Box-type fusion-welded plate heat exchangers offer several key features that make them a preferred choice for efficient heat transfer in industrial applications. Some of these features include:
Compact design: Box-type fusion-welded plate heat exchangers have a compact and space-saving design. The welded plates are arranged in a box-like structure, allowing for a large heat transfer surface area within a small footprint. This compact design is beneficial in installations where space is limited.

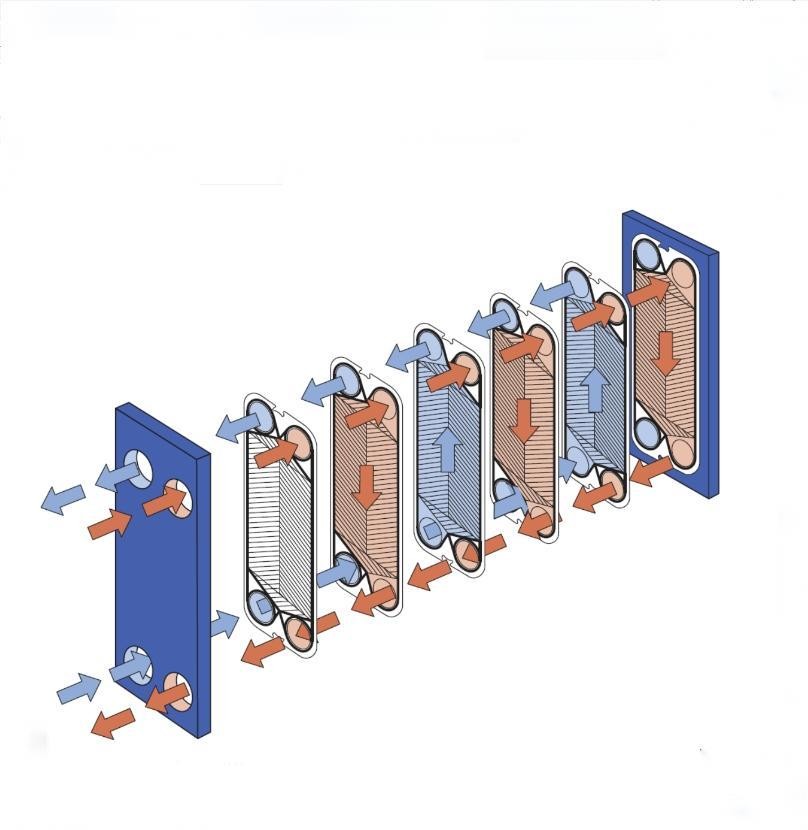

High thermal efficiency: The fusion-welded plates in the heat exchanger are designed with corrugations or chevrons, which enhance the heat transfer process. These corrugations create turbulence in the fluid flow, maximizing the contact between the hot and cold fluids and improving overall thermal efficiency.
Fusion-welded construction: The plates in a box-type fusion-welded heat exchanger are securely welded together, ensuring a leak-free and robust connection. The fusion welding technique provides a strong bond between the plates, allowing the heat exchanger to handle high pressures and temperatures without compromising integrity.
Versatile customization: Box-type fusion-welded plate heat exchangers can be customized to meet specific process requirements. They can be designed for single-pass or multi-pass configurations, allowing for efficient heat exchange based on the thermal and flow characteristics of the fluids being handled.
Wide material compatibility: The plates of the heat exchanger are typically made of high-quality materials such as stainless steel or titanium. These materials offer excellent corrosion resistance, making the heat exchanger compatible with a wide range of fluids, including corrosive or aggressive media.
Easy maintenance and cleaning: The modular design of box-type fusion-welded plate heat exchangers allows for easy access to the plates, simplifying maintenance, cleaning, and inspection procedures. This feature contributes to the longevity and optimal performance of the heat exchanger.
High-pressure capability: Box-type fusion-welded plate heat exchangers are designed to handle high-pressure applications. They can effectively accommodate the demands of industrial processes that require heat transfer under elevated pressures.
These features collectively make box-type fusion-welded plate heat exchangers efficient, reliable, and suitable for a wide range of industrial applications where compactness, high thermal efficiency, and durability are essential.
