Food And Beverage Industry Heat Transfer Device Stainless Steel Box Type Fusion Bonded Plate Heat Exchanger

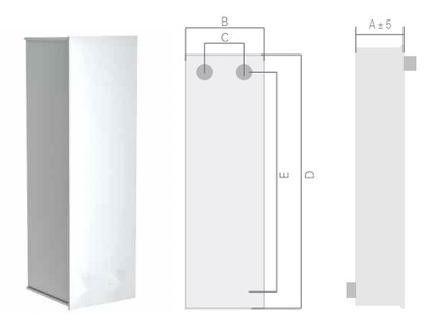

| TYPE |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
THICKNESS(mm) |
WEIGHT(Kg) |
MAX FLOW m3/h) |
DESIGN PRESSURE (Mpa) |

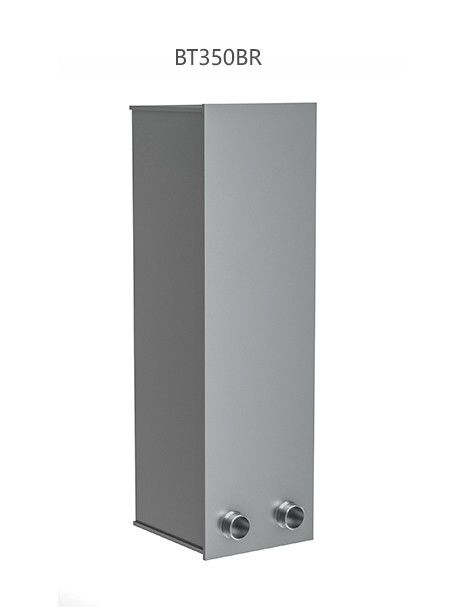

| BT350BR |
318 |
160 |
1060 |
912 |
44+2.23N |
79.3+1.31N(N<132)
82.23+1.404N(N≥132)
|
50 |
0.5 |
|
|
|
Development :
Heat Exchanger is the energy-efficient equipment which realize heat transfer between materials in two types or above two types fluid with different temperature , make heat transmit from higher temperature to lower temperature of the fluid , and make fluid temperature match stated index in order to reach the require of tech condition , in meanwhile , also the mainly equipment for improving energy utilization rate . It is widely use in heating and ventilation, pressure vessel , water treating equipment, chemical, petroleum, metallurgy, electric power, ship, supply heating, food, refrigeration air conditioner , pharmacy, etc ....
Features:
Compact design: Box-type fusion-welded plate heat exchangers have a compact and space-saving design. The welded plates are arranged in a box-like structure, allowing for a large heat transfer surface area within a small footprint. This compact design is beneficial in installations where space is limited.
High thermal efficiency: The fusion-welded plates in the heat exchanger are designed with corrugations or chevrons, which enhance the heat transfer process. These corrugations create turbulence in the fluid flow, maximizing the contact between the hot and cold fluids and improving overall thermal efficiency.
Wide material compatibility: The plates of the heat exchanger are typically made of high-quality materials such as stainless steel or titanium. These materials offer excellent corrosion resistance, making the heat exchanger compatible with a wide range of fluids, including corrosive or aggressive media.
Easy maintenance and cleaning: The modular design of box-type fusion-welded plate heat exchangers allows for easy access to the plates, simplifying maintenance, cleaning, and inspection procedures. This feature contributes to the longevity and optimal performance of the heat exchanger.
These features collectively make box-type fusion-welded plate heat exchangers efficient, reliable, and suitable for a wide range of industrial applications where compactness, high thermal efficiency, and durability are essential.
