Detail Information

Material:	Copper	Max Design Pressure:	4.5 Mpa
Connection Mode:	Male Thread , Female Thvead, Flange, SAE Flange, Soldering	Warranty Period:	One Year
Structure:	Plate Heat Exchanger	HS CODE:	8419500090
Application:	HVAC Industry/Chemical/Electronic/Food/Pharmacy And Health Industry
Highlight:	Efficient Brazed Plate Heat Exchanger , Efficient Water Plate Heat Exchanger , compact Brazed Plate Heat Exchanger

Product Description

Brazed Plate Heat Exchanger Water to Water Heat Exchanger

Introduction :

Brazed plate heat exchangers are efficient and reliable devices that utilize brazing technology to join corrugated metal plates together. They offer excellent heat transfer performance, compact size, and versatility for various applications, making them an ideal choice for efficient heat exchange.

Advancements in Plate Design: Over the years, there have been significant advancements in plate design and manufacturing techniques for copper plate heat exchangers. The optimization of plate patterns, corrugation profiles, and flow arrangements has led to improvements in heat transfer efficiency and compactness.

Industrial Applications: Copper plate heat exchangers found widespread use in various industries. They were employed in HVAC systems, refrigeration, chemical processing, power generation, food processing, and many other applications that require efficient heat transfer.

Material Innovations: Alongside copper, other materials like stainless steel and nickel alloys have also been utilized in plate heat exchangers. However, copper remains a popular choice due to its excellent thermal conductivity, corrosion resistance, and cost-effectiveness.

TYPE	B(mm	C(mm	D(mm)	E(mm)	Thickness (mm)	Weight(Kg)	Max Flow (m3/h)	Design Pressure (Mpa)
SB14	77	42	206	172	9+2.3N	0.7+0.06N	8	1/3/4.5
SB16	78	42	208	172	9+2.24N	0.6+0.049N	8	1/3/4.5
SB18	95	50	210	165	7+3.1N	0.7+0.06N	8	1
SB20B	78	42	318	282	9+2.3N	1+0.08N	8	3/4.5
SB20C	77	42	313	278	10+1.28N	0.9+0.07N	8	3/4.5
SB26	111	50	310	250	10+2.32N	1.3+0.12N	18	3/4.5
SB26F	107	50	307	250	10+1.98N	1.3+0.1N	18	3/4.5
SB28B	120	72	290	243	10+2.36N	1.5+0.133N	18	3/4.5
SB28C	120	63	290	234	10+2.36N	1.5+0.133N	18	3/4.5
SB30	126	70	307	250	10+2.35N	2.2+0.16N	18	3/4.5
SB52A	111	50	526	466	9+2.32N	2.6+0.21N	18	3/4.5
SB52B	111	50	526	466	9+2.32N	2.6+0.19N	18	3/4.5
SB53	106	50	522	466	9+2.1N	2.6+0.27N	18	3/4.5
SB62A	120	63	528	470	10+2.35N	2.379+0.194N	18	3/4.5
SB62B	120	63	528	470	10+2.35N	2.379+0.194N	18	3/4.5
SB65	125	65	540	480	11+2.28N	2.5+0.228N	18	3/4.5
SB95A	189	92	616	519	11+2.7N	7.8+0.44N	42	3/4.5
SB95B	189	92	616	519	11+2.7N	7.8+0.44N	42	3/4.5
SB120A	246	174	528	456	10+2.34N	7.2+0.52N	42	3/4.5
SB120B	246	174	528	456	10+2.34N	7.2+0.52N	42	3/4.5
SB190	303	179	695	567	13+2.3N	12+0.61N	100	1.6/2.1/3
SB200A	320	188	742	603	14+2.7N	13+0.67N	100	1.5/2.1/3
SB200B	320	188	742	603	14+2.7N	13+0.67N	100	1.5/2.1/3
SB200E	320	207	742	624	14+2.7N	13+0.67N	100	1.5/2.1/3
SB202	319	188	741	603	16+2.85N	13+0.957N	100	2.1/3
SB300	370	118(95.5)	995	861(816)	17+2.675N	20+1.26N	200	1.6/2.1/3
SB500	304	179	982	854	17+2.29N	26.6+0.93N	200	2.1/3
SB01	390	204	1320	1132	22+2.75N	30+1.8N	300	3/4.5

Workshop :

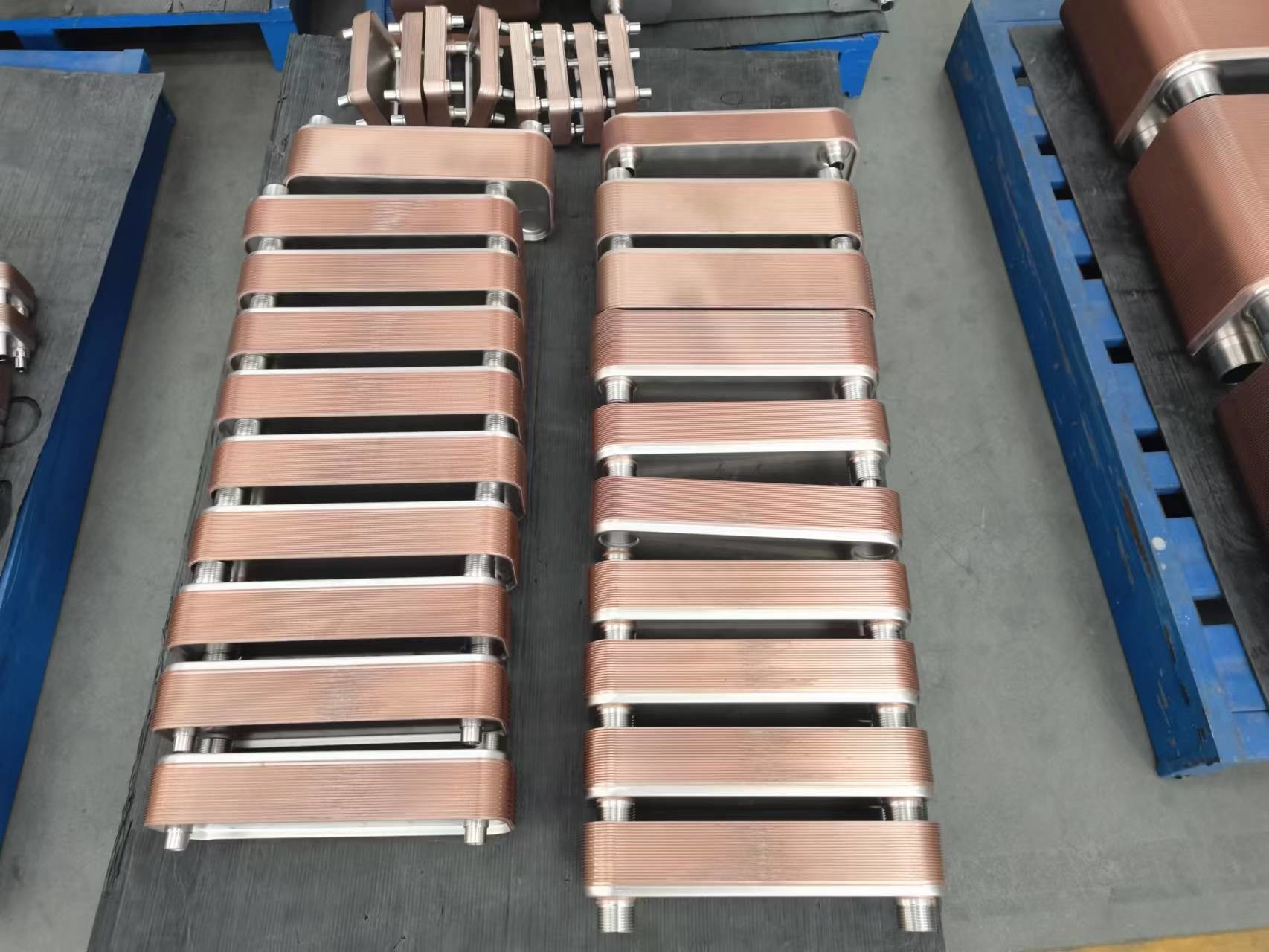

Compact Efficient Brazed Plate Heat Exchanger Water To Water Plate Heat Exchanger 0

Package:

Compact Efficient Brazed Plate Heat Exchanger Water To Water Plate Heat Exchanger 1

Compact Efficient Brazed Plate Heat Exchanger Water To Water Plate Heat Exchanger 2

Tag:

Place of Origin:	CHINA
Brand Name:	Tenkai
Certification:	ISO
Model Number:	SB20C

Minimum Order Quantity:	1 Package
Price:	Negotiate
Packaging Details:	Wooden Box Package
Delivery Time:	Within one week
Payment Terms:	L/C, T/T, D/P
Supply Ability:	550pcs/Day
