1.0Mpa Central Heating Plate Heat Exchanger Gasketed

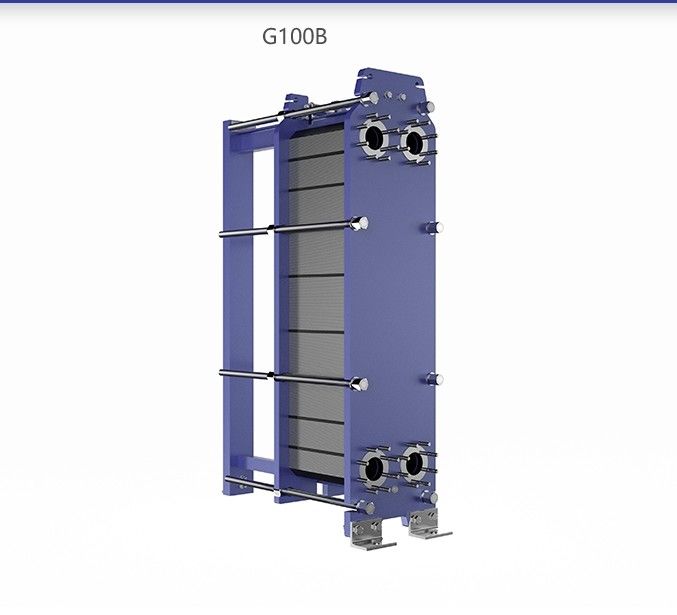

Application in Concentrated Heating G100B Series Gasket Plate Heat Exchanger

Introduction :

Gasket Plate Heat Exchanger is a heat transfer device that consists of a series of individual plates that can be easily disassembled and reassembled. Each plate has special patterns that create flow channels for the hot and cold fluids, allowing efficient heat exchange to occur. The detachable design offers flexibility for maintenance, cleaning, and modifications.

Application :

HVAC industry, Chemical industry, Power generation industry, Oil and gas industry, Metallurgical industry, Pulp and paper industry, Textile Industry, Paper making , Concentrated heating, Electric power industry, Oil prodution industry, Marine, etc .

Apply in Textile Industry :

• Heat Recovery of Various Waste Liquids
• Cooling of Boiling Phosphoric Fiber
• Cooling of Adhesive Solution
• Cooling of Acetic Acid and Acetic Anhydride
• Cooling of Alkaline Water Solution
• Heating and Cooling of Viscose Filament

Apply in Concentrated Heating :

1. District Heating from Waste Heat in Thermal Power Plants
2. Heating Domestic Hot Water with Waste Heat
3. Boiler Area Heating

Product Features:

1. Easy Disassembly and Reassembly: The detachable plate heat exchanger allows for convenient access to the individual plates, facilitating cleaning, maintenance, and inspection operations.
2. High Heat Transfer Efficiency: The special patterns on the plates promote turbulent flow and maximize the heat transfer surface area, resulting in efficient heat exchange and improved performance.
3. Compact Design: The compact arrangement of the plates enables a large heat transfer surface area within a small footprint, making it suitable for applications where space is limited.
4. Flexibility and Scalability: The modular design allows for easy customization and expansion by adding or removing plates to meet specific heat transfer requirements.
5. Versatile Applications: Detachable plate heat exchangers are widely used in various industries, including HVAC systems, refrigeration, food processing, chemical processing, power generation, and oil and gas industries.

Workshop :

Package :

Test Area :

Install Diagram :
